Loflin Fabrication Extra Heavy Duty XHD Root Grapple for Skid Steer
Loflin Fabrication Extra Heavy Duty XHD Root Grapple for Skid Steer
Loflin Fabrication
SKU:0010701072
Couldn't load pickup availability
- SECURE PAYMENT
- MADE IN THE USA
- EASY SHIPPING

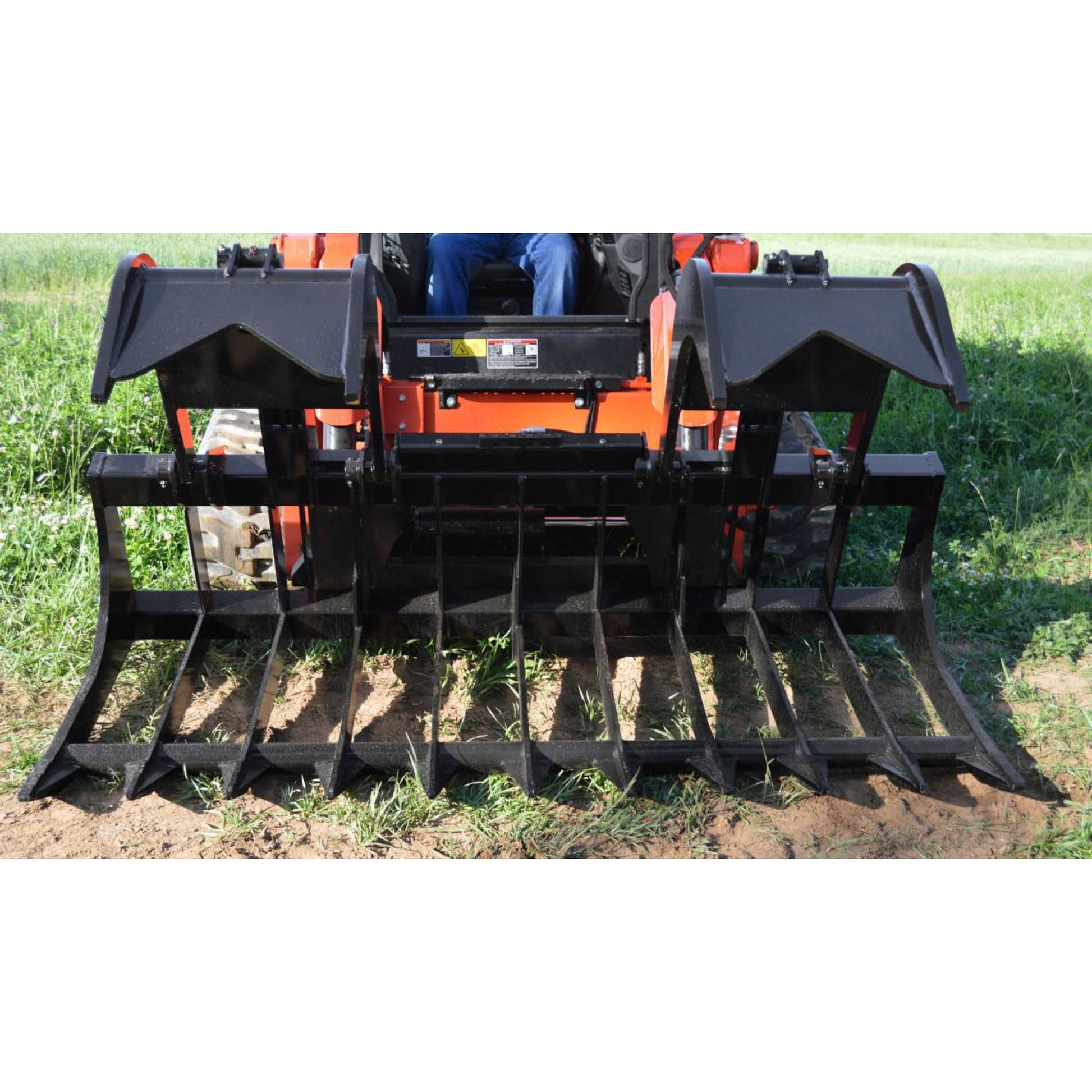

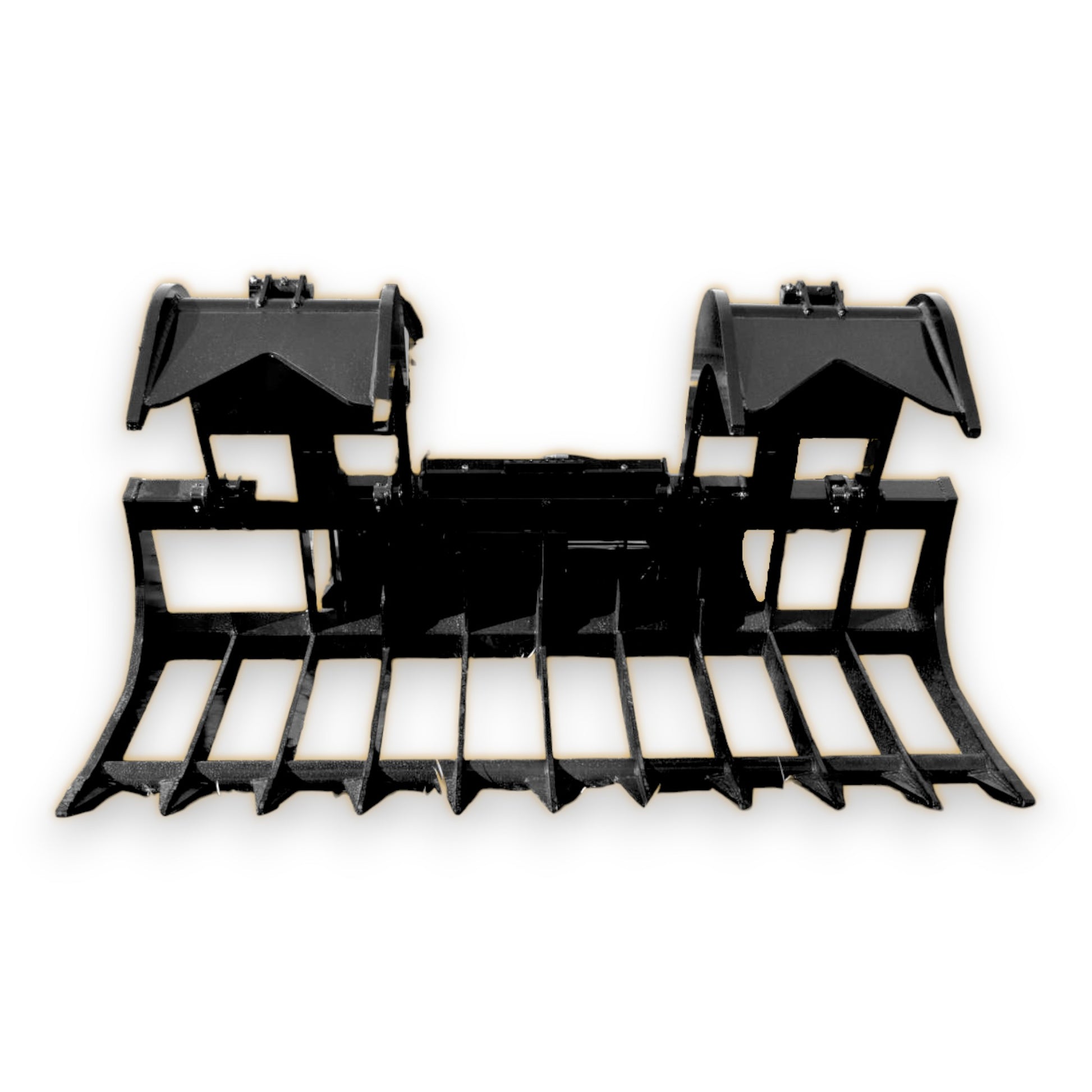

When the job demands maximum strength, the Extra Heavy Duty (XHD) Root Grapple from Loflin Fabrication delivers. Built in the USA with 1″ thick independent grapple tines and reinforced quick attach, this grapple is engineered for professionals running high-horsepower skid steers. From storm cleanup to demolition debris, the XHD Root Grapple is designed to outlast the toughest conditions.
3 Jobs in 1 Pass:
- Rake away debris and keep it in a manageable pile.
- Move and load material such as logs, brush, rocks, or demolition waste.
- Backfill with ease using the curved bottom bar.
Key Features:
- Independent grapple tines powered by 2″ x 10″ cylinders for up to 9,500 lbs of grappling force.
- 1/2″ thick steel tines with 1″ thick outside tines for extreme durability.
- Rated for skid steers up to 110 horsepower.
- Opening width: 33 1/4″ for handling bulky debris.
- Tine spacing: 8.5″-9″ standard (custom spacing available on request).
- Oversized, greasable 1 1/4″ pins and fully greasable hinge points for long service life.
- Fully protected hoses and covered hydraulic cylinders reduce maintenance.
- Reinforced quick attach plate for heavy-duty performance.
- Slides along the ground without digging in - protects soil and utilities.
- Equipped with Parker brand hoses, fittings, and couplers (jobsite ready).
- Sizes stocked: 72″, 78″, 84″ (custom sizes available on request).
Why Choose LF XHD Root Grapple?
As the original root grapple manufacturer, Loflin Fabrication’s Extra Heavy Duty model is built for professionals who push equipment to the limit. With thicker steel, larger pins, and a higher horsepower rating, it’s the go-to attachment for contractors and owners needing maximum durability and performance.
