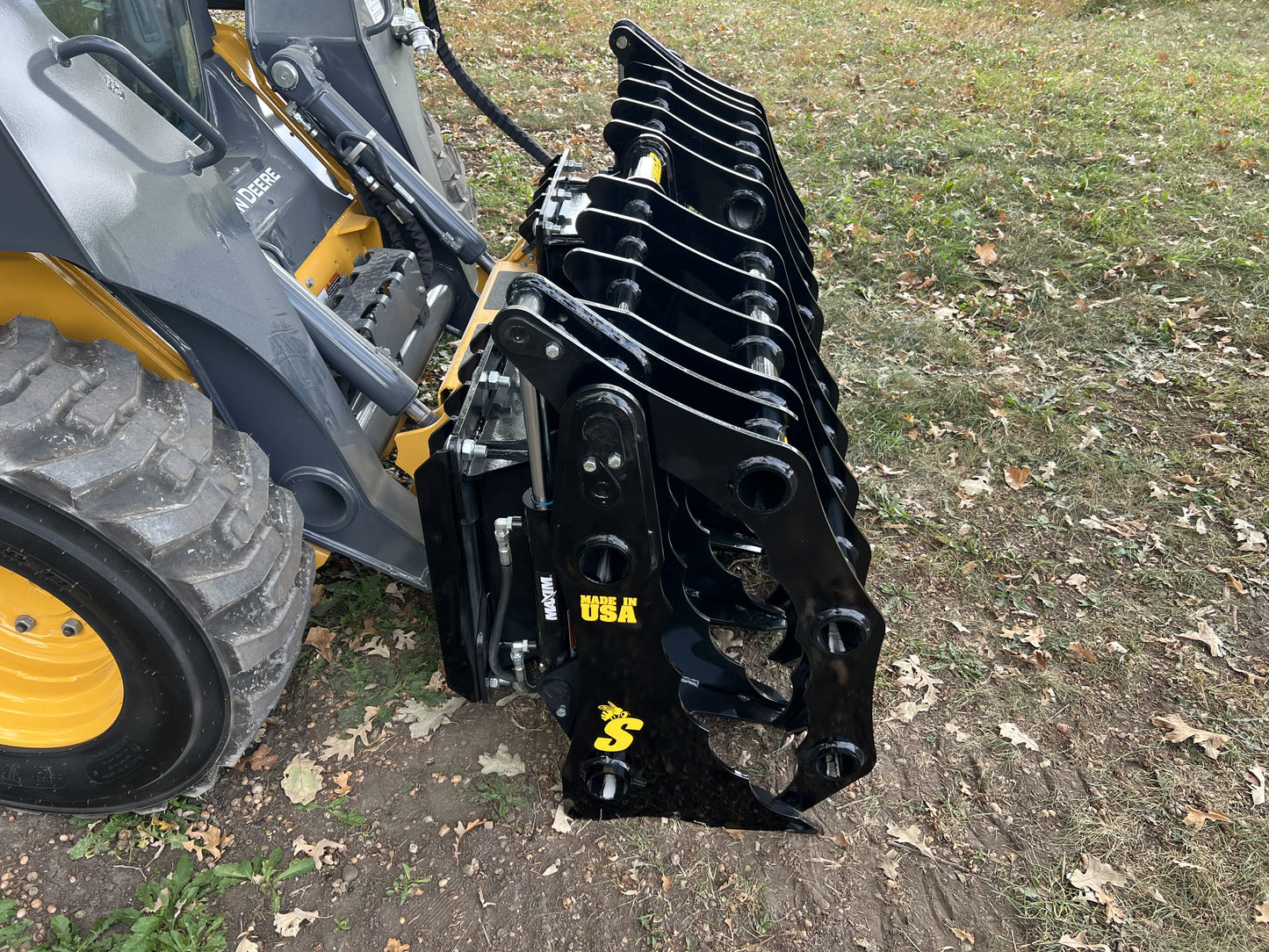

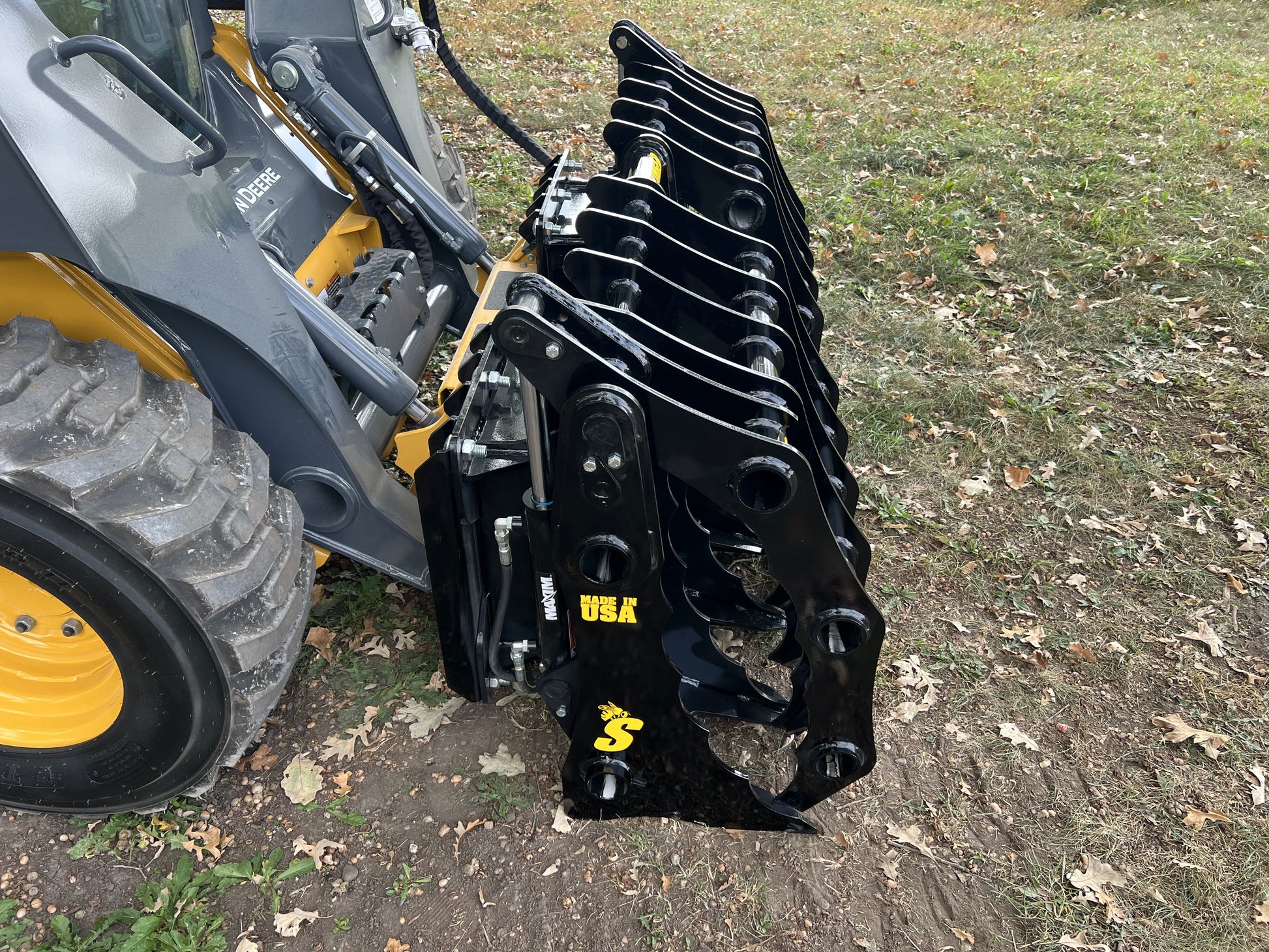

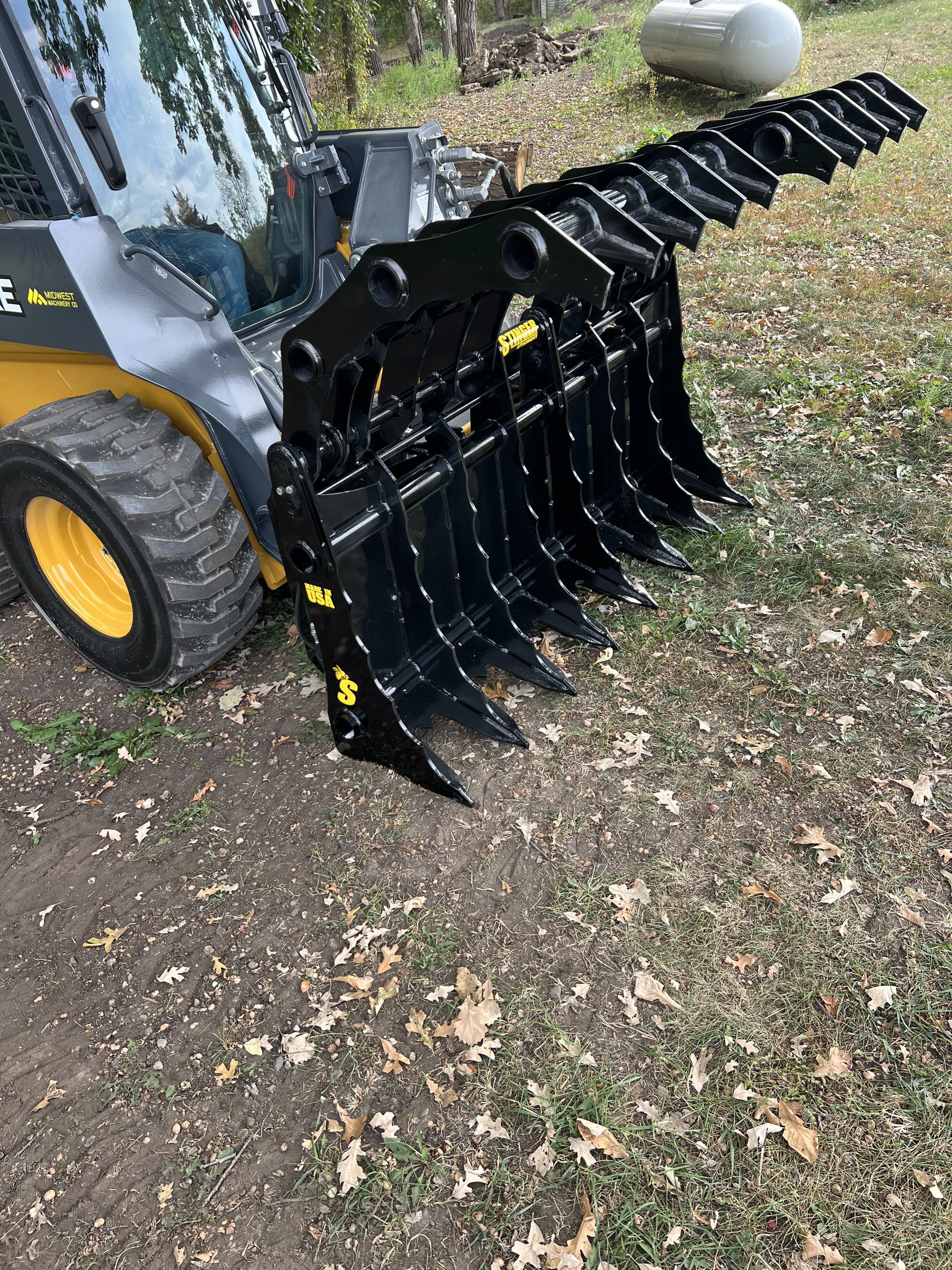

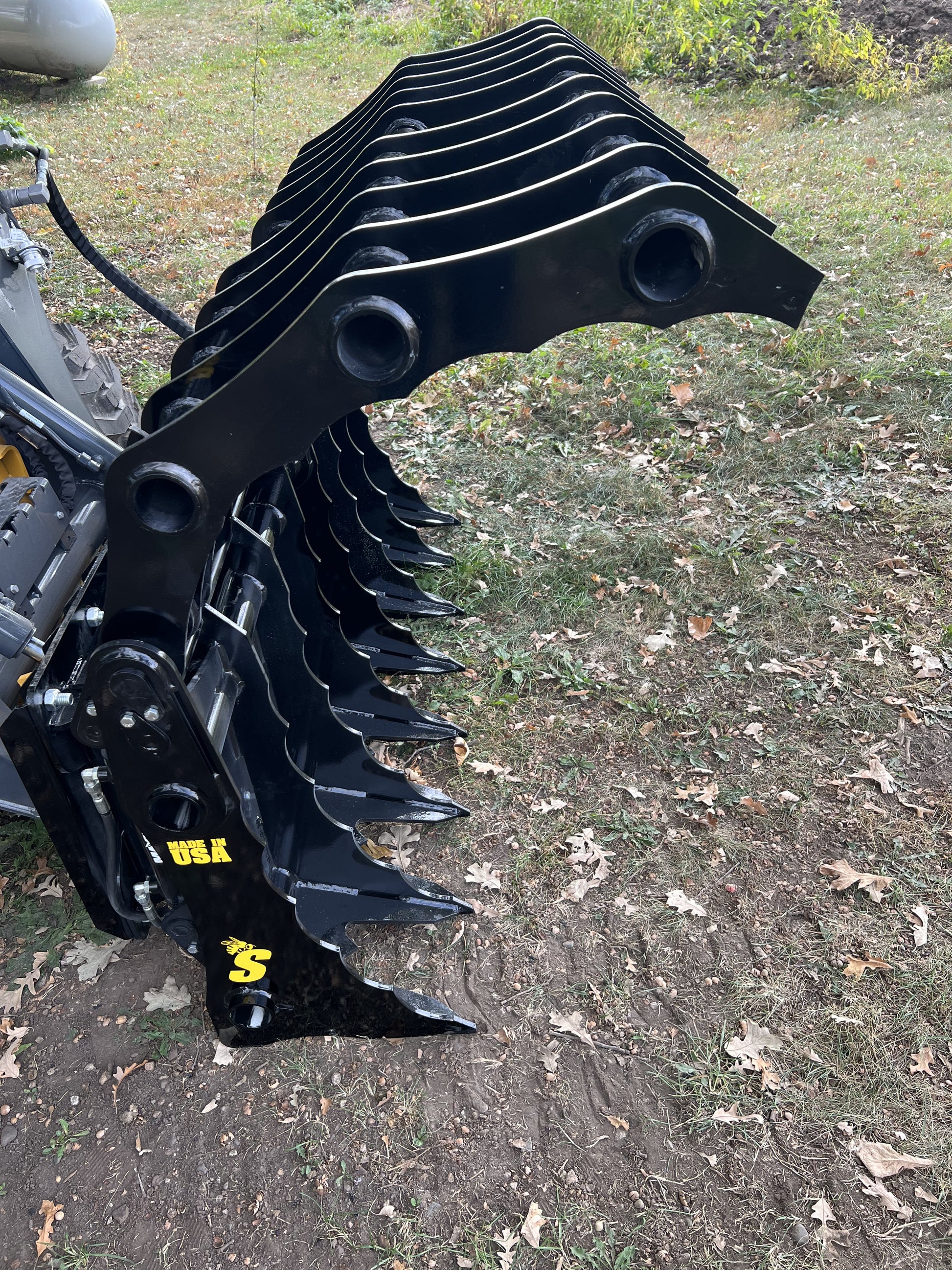

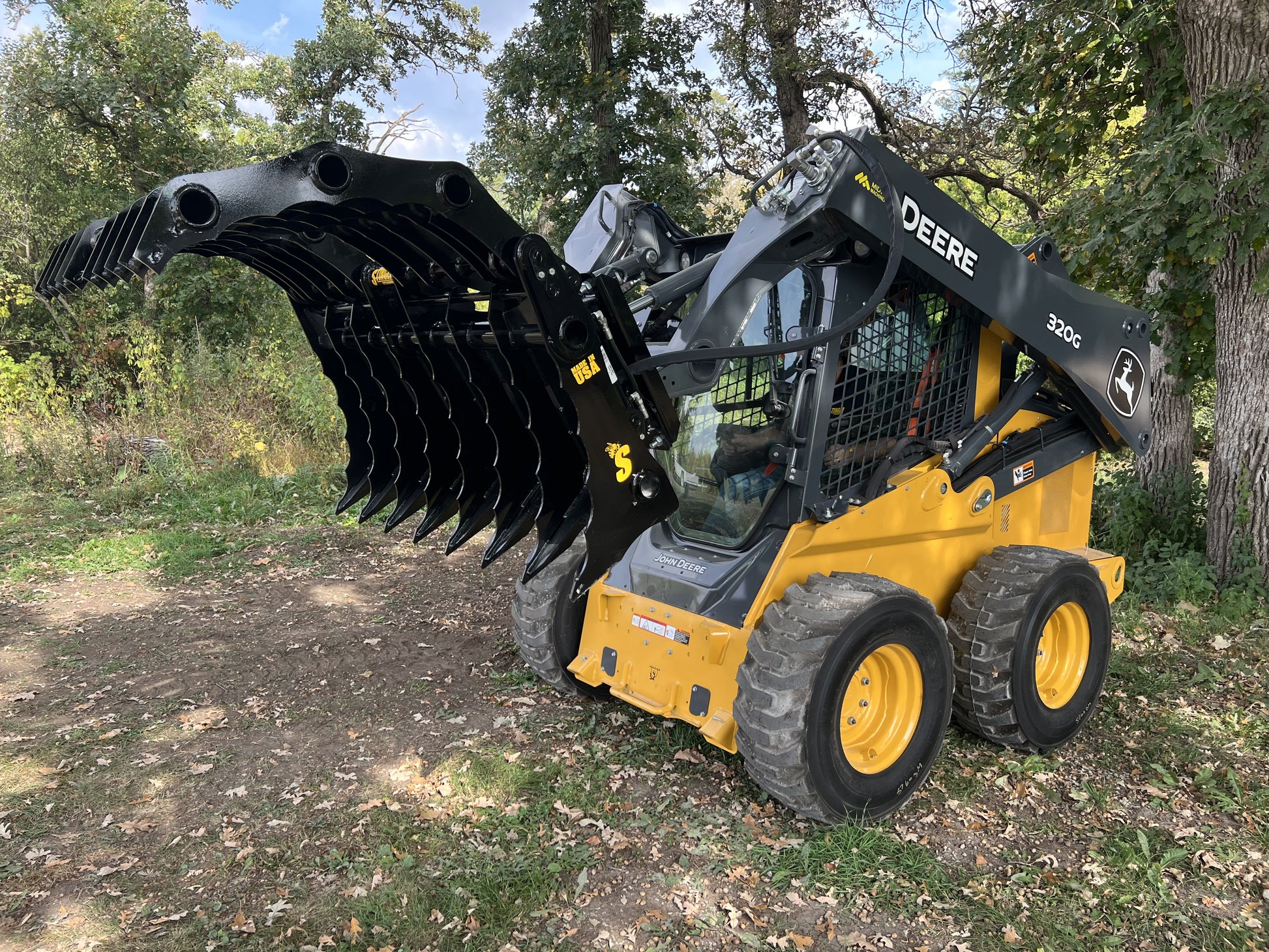

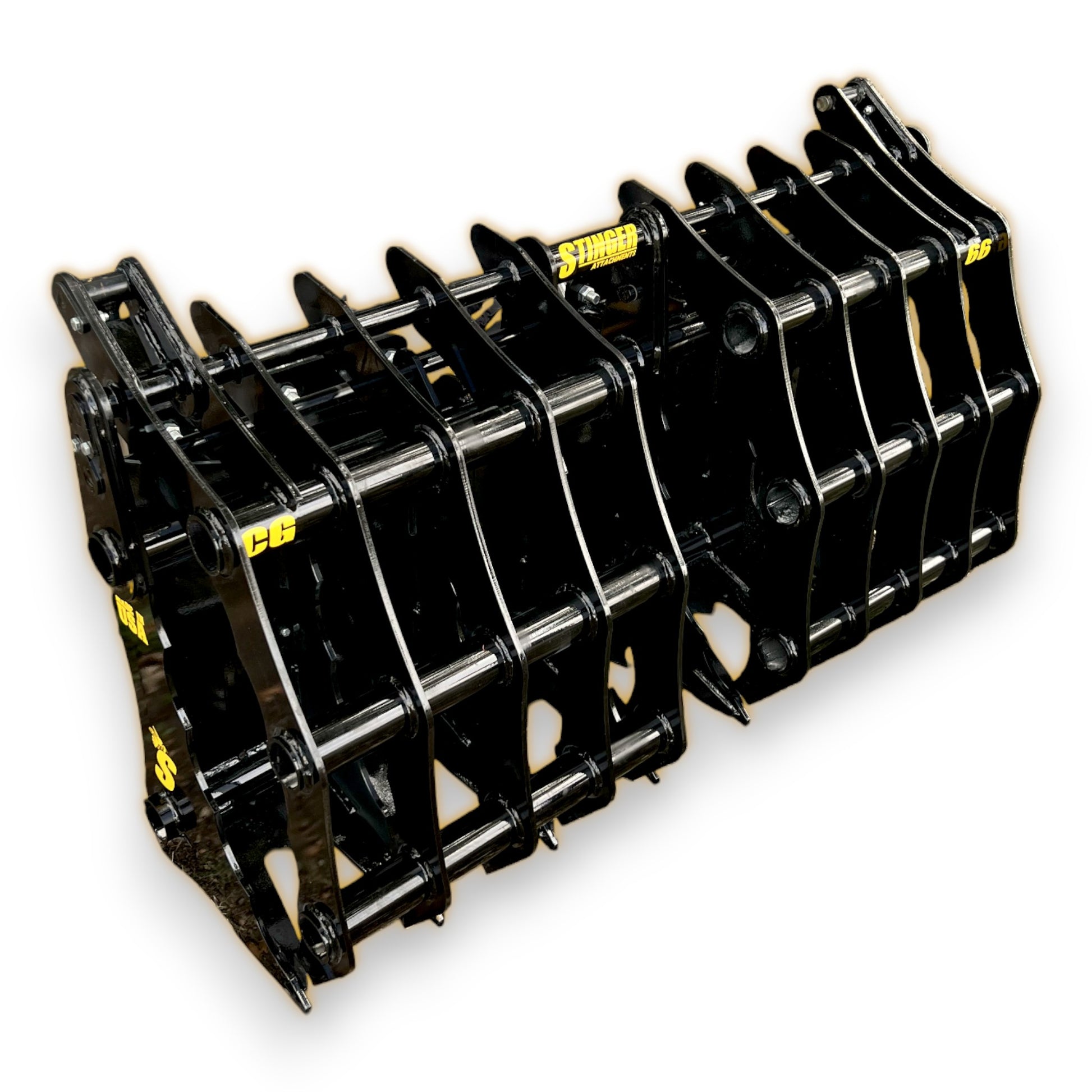

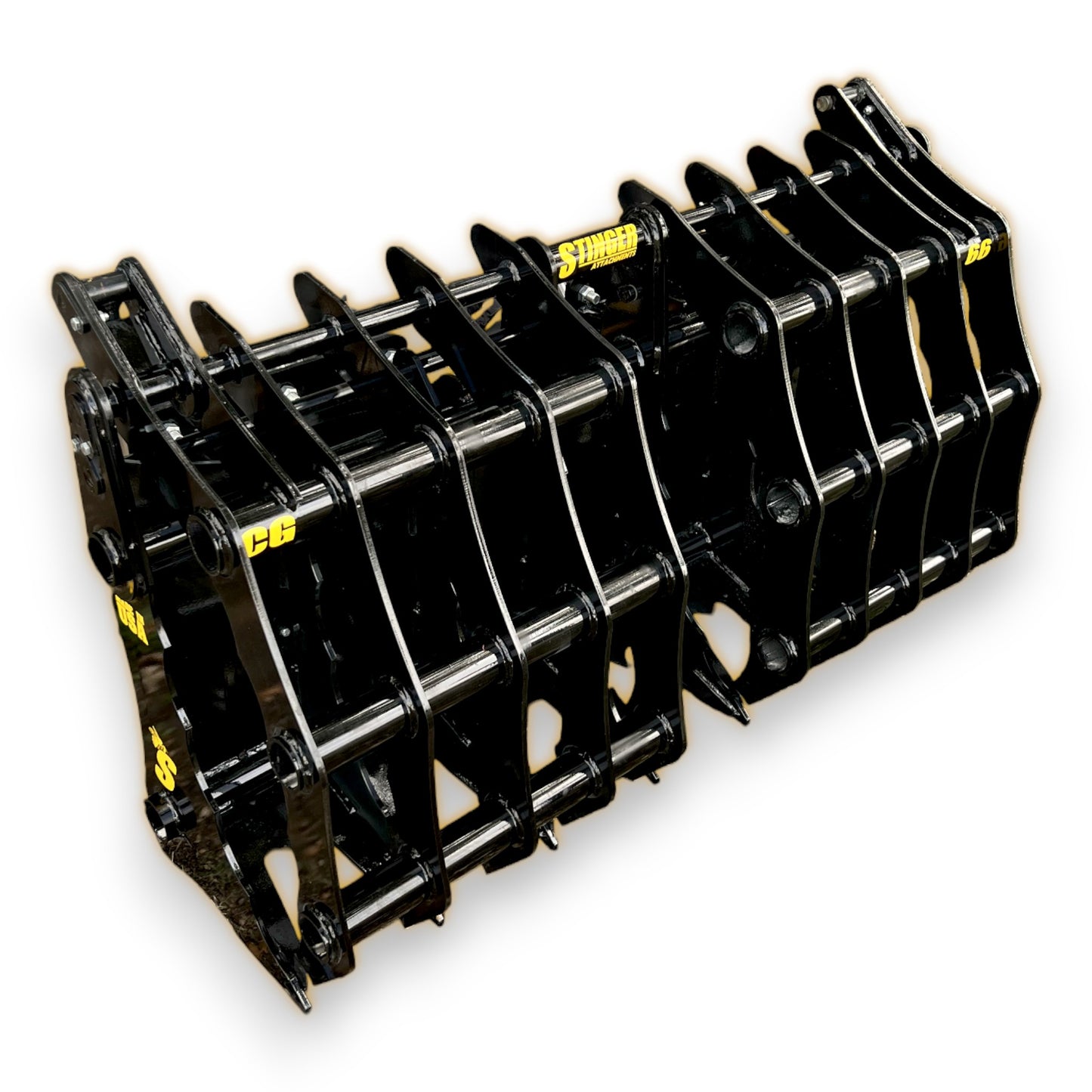

The Stinger Attachments Clam Grapple (CG Series) is built for operators who demand control, strength, and reliability from their skid steer attachments. Designed to outperform in the toughest conditions, this upgraded version of the Compact Clam Grapple features AR200 abrasion-resistant steel and a massive 46-inch grapple opening. Whether you’re moving timber, rock, brush, or debris, the CG Series delivers the grip and power needed for maximum productivity.
Key Features:
Max Jaw Opening: 46″ for handling large logs, rocks, and debris.
Material: 3/8″ AR200 abrasion-resistant steel for superior durability.
Independent Grapples: Dual jaws operate separately for precision control.
Universal Quick Attach: fits most skid steers (John Deere 100-500 Series also available).

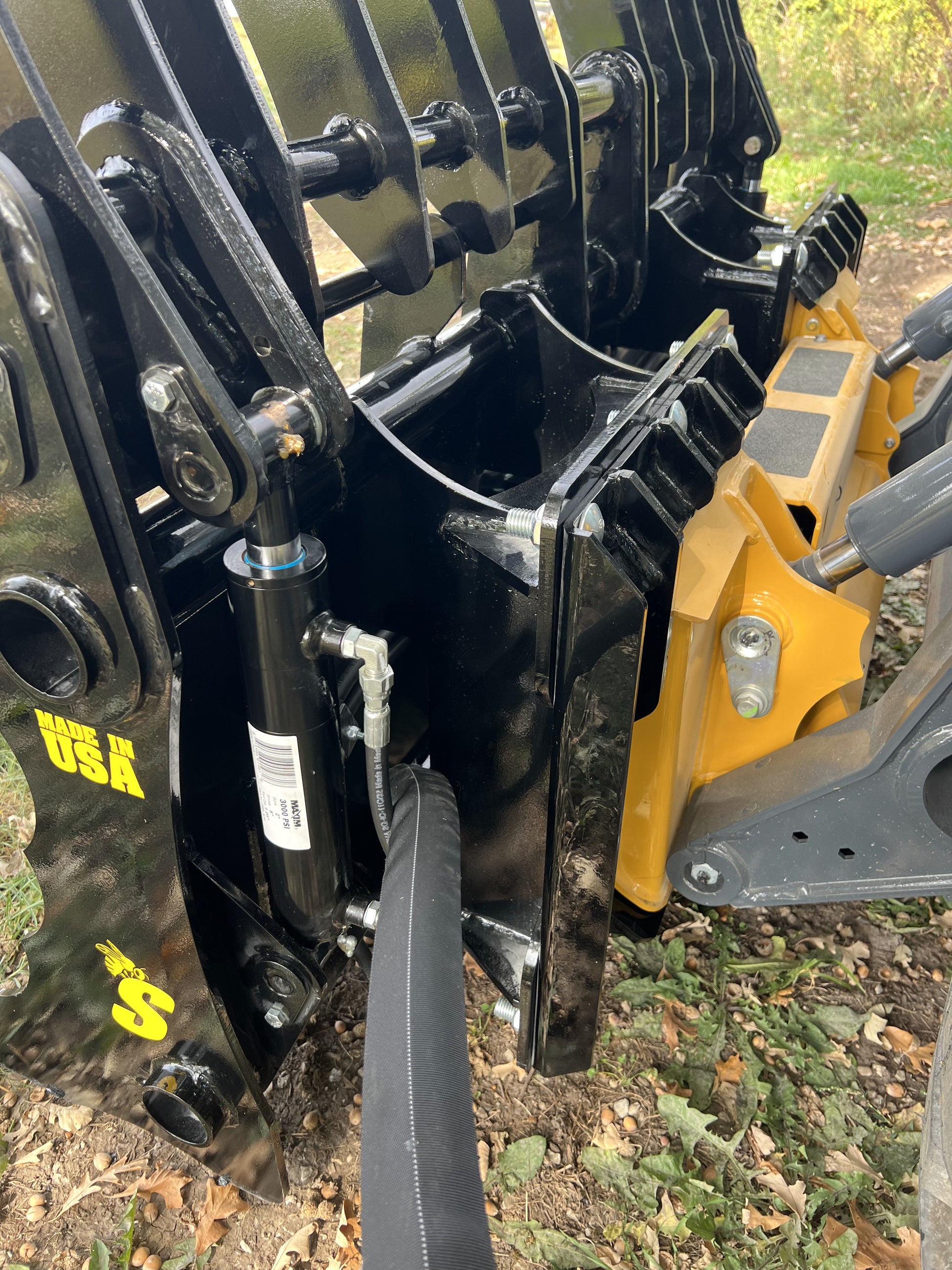

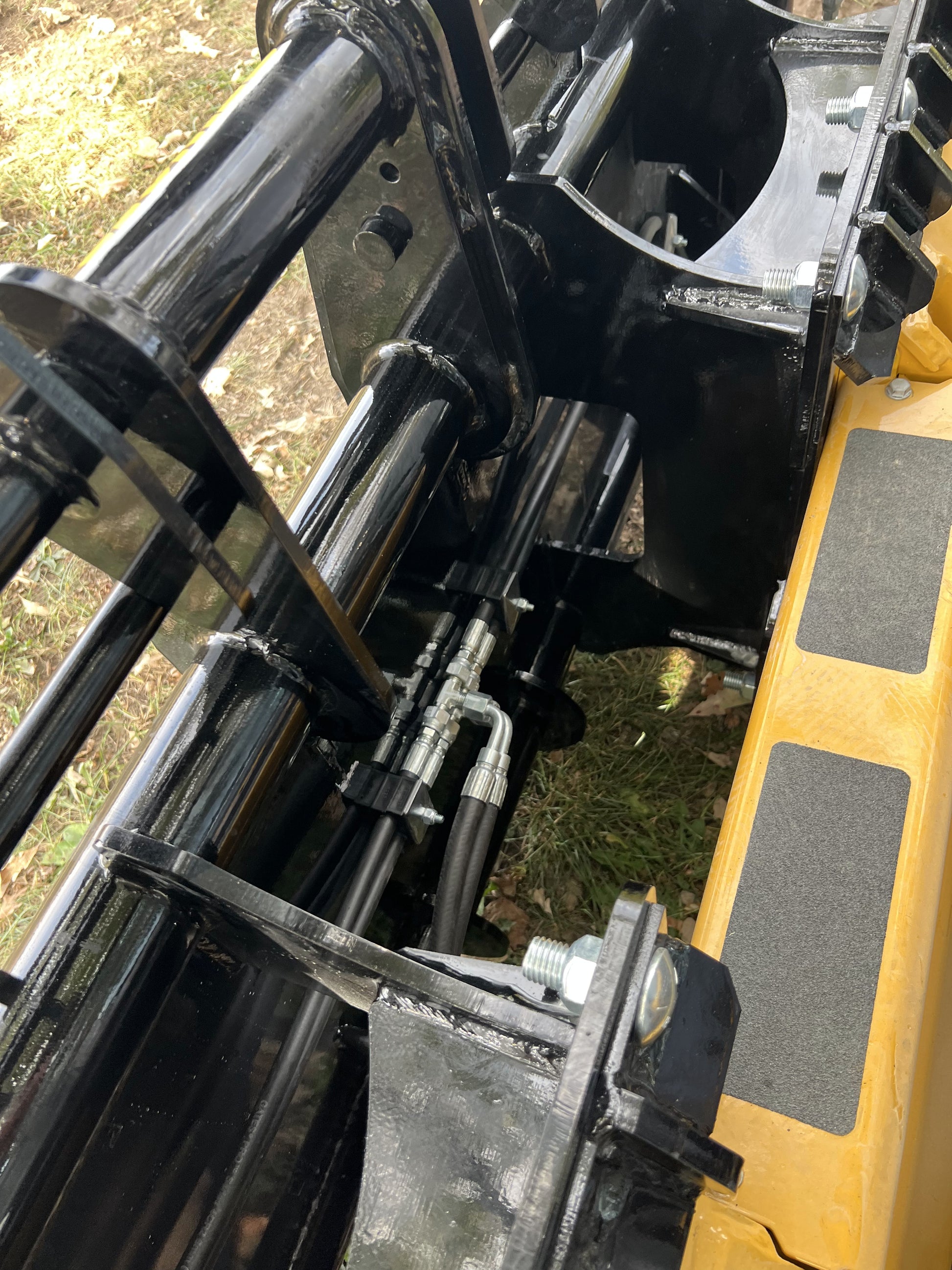

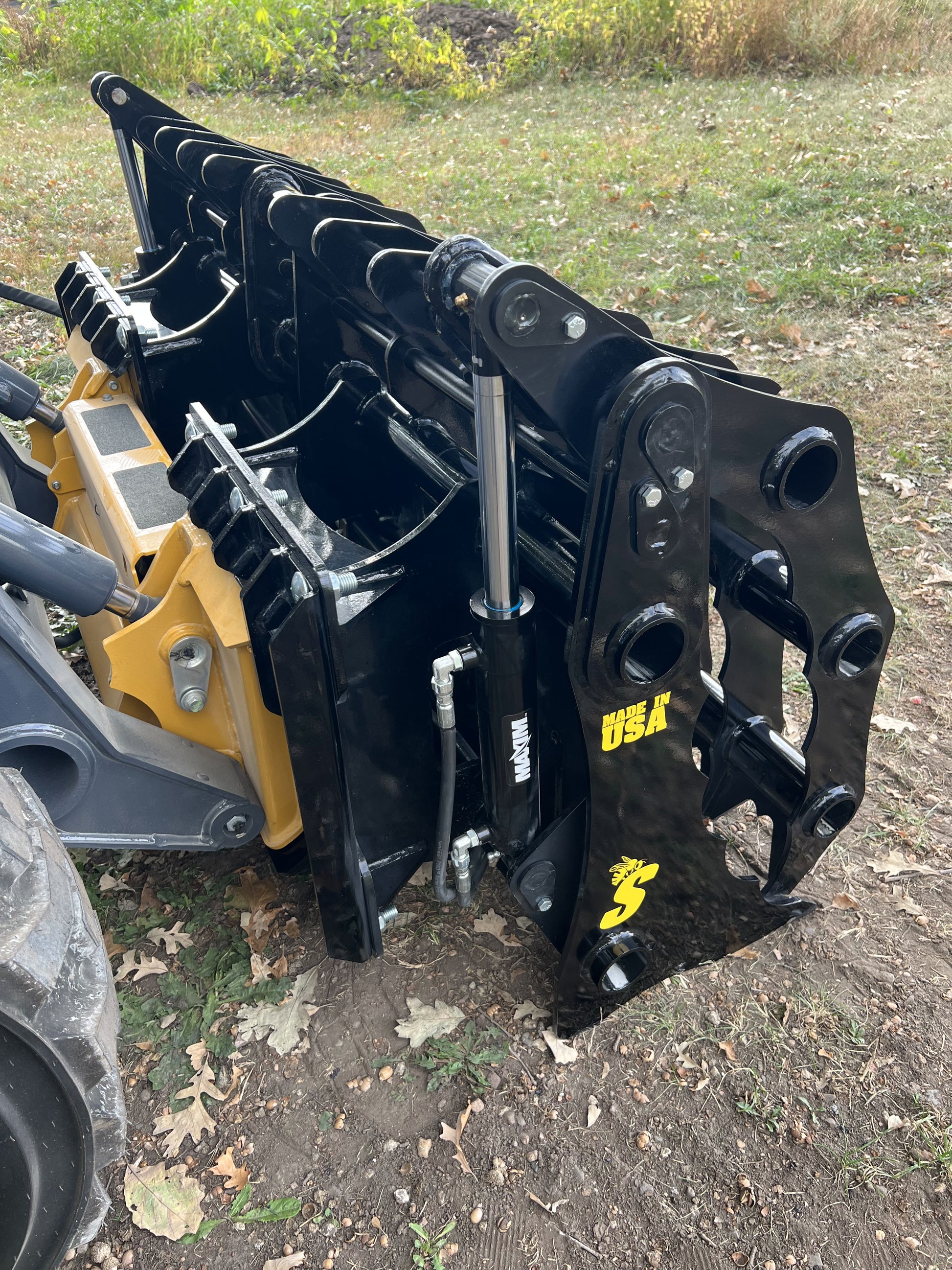

Hydraulic Cylinders: Two 2″ × 8″ 3,000 PSI welded cylinders with ½″ flat-face couplers.
Enclosed Back: supports loose materials while increasing structural rigidity.
Warranty: 2 Years | 100% USA Made.
Specifications:
Model Width
Approx. Weight
Material
Cut Edge
66″
855 lbs
⅜″ AR200
½″ Serrated
75″
915 lbs
⅜″ AR200
½″ Serrated
84″
1,025 lbs
⅜″ AR200
½″ Serrated
Construction & Components:
Built from AR200 high-strength steel throughout for abrasion resistance and long life.
Structural Reinforcement: 2-½″ tubing for rigidity and frame strength.
Pivot System: 1″ greaseable grapple pivot shaft for smooth operation and longevity.

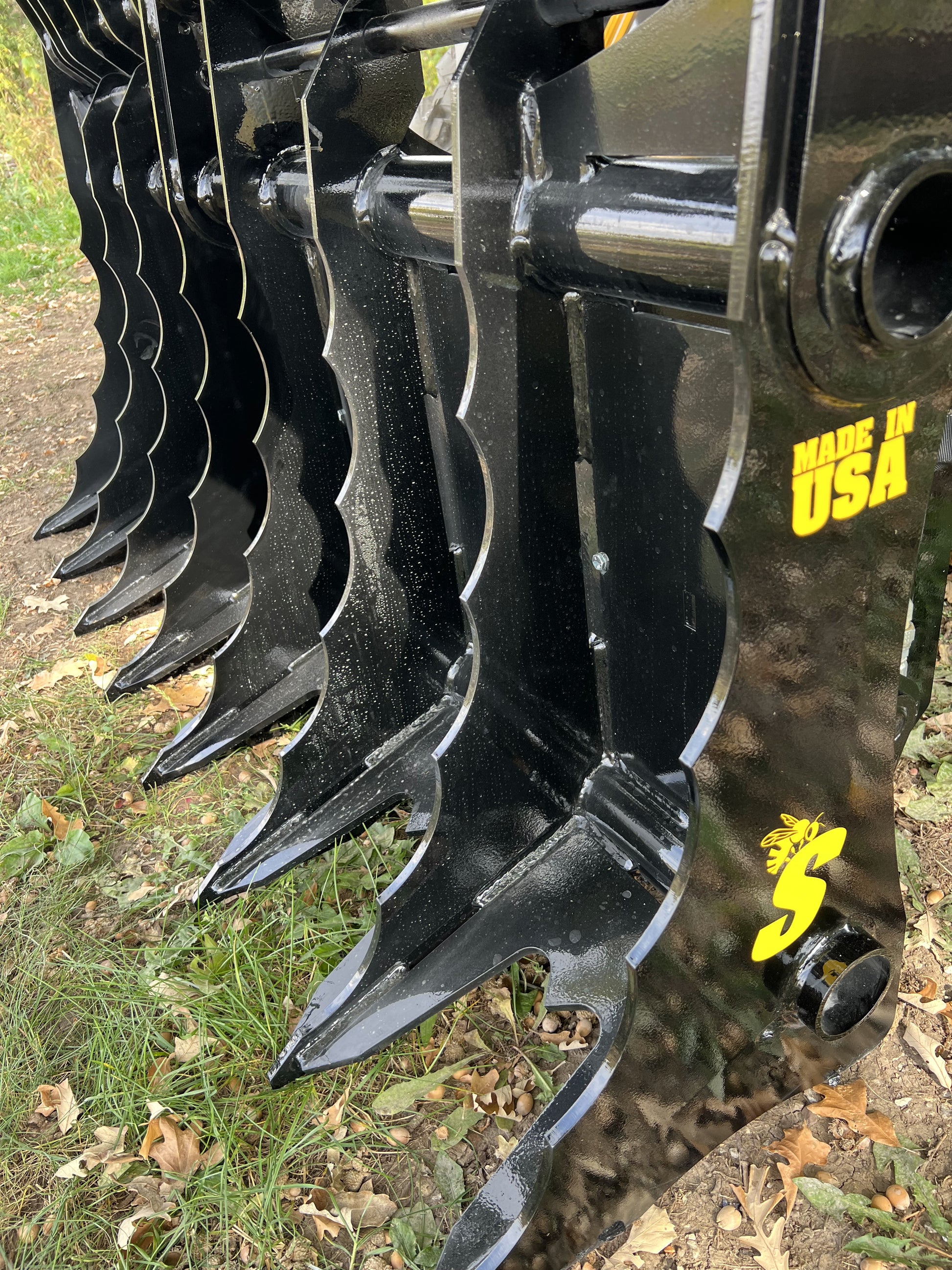

Tine Spacing: 9″ between tines for optimized material handling and sifting.
Mount Options: Bolt-on mount design compatible with Universal QA and John Deere carriers.
Hydraulic System: Compatible with multiple coupler styles - flat-face, quick-connect, and standard options.
Performance & Use Cases:

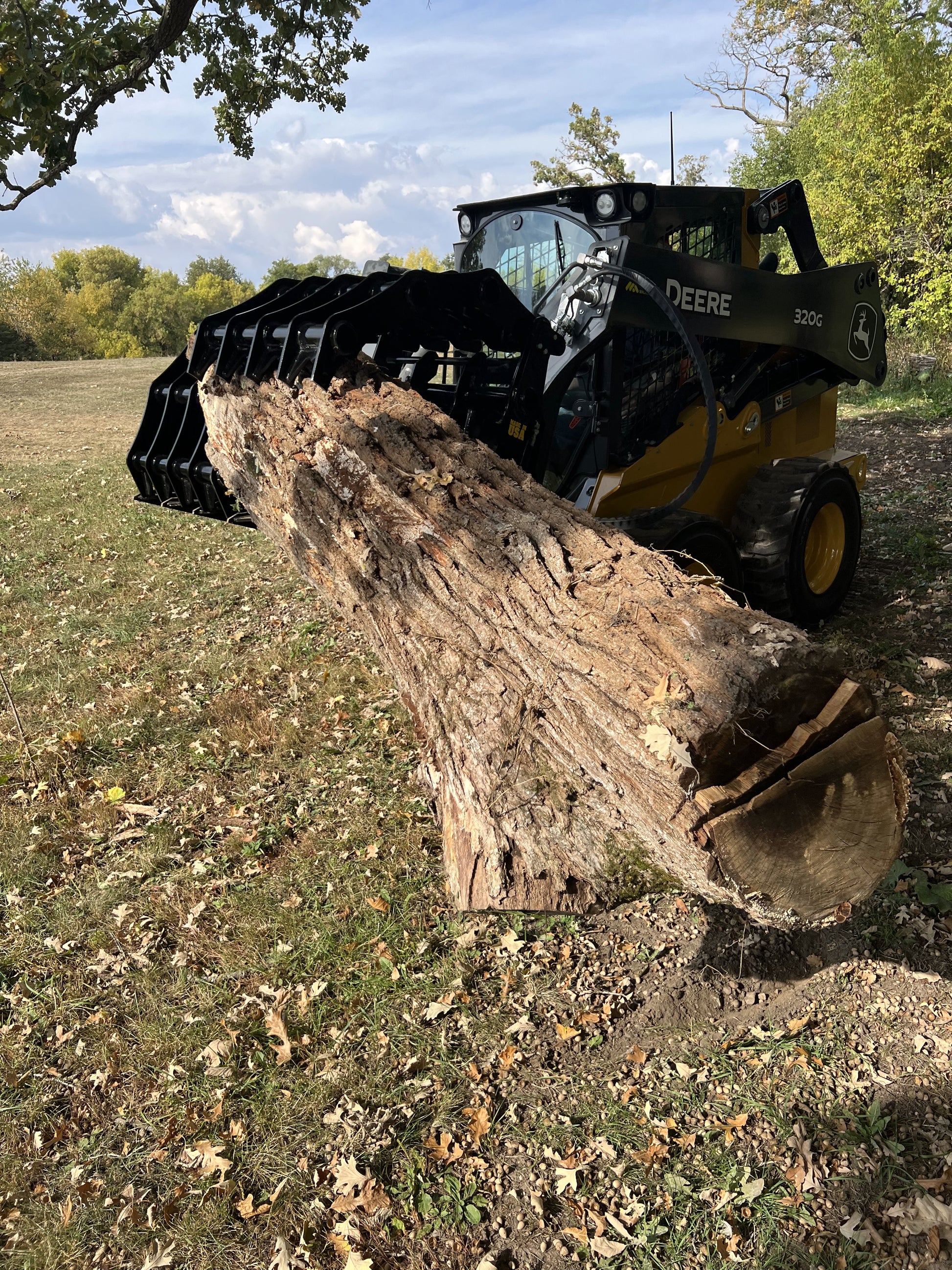

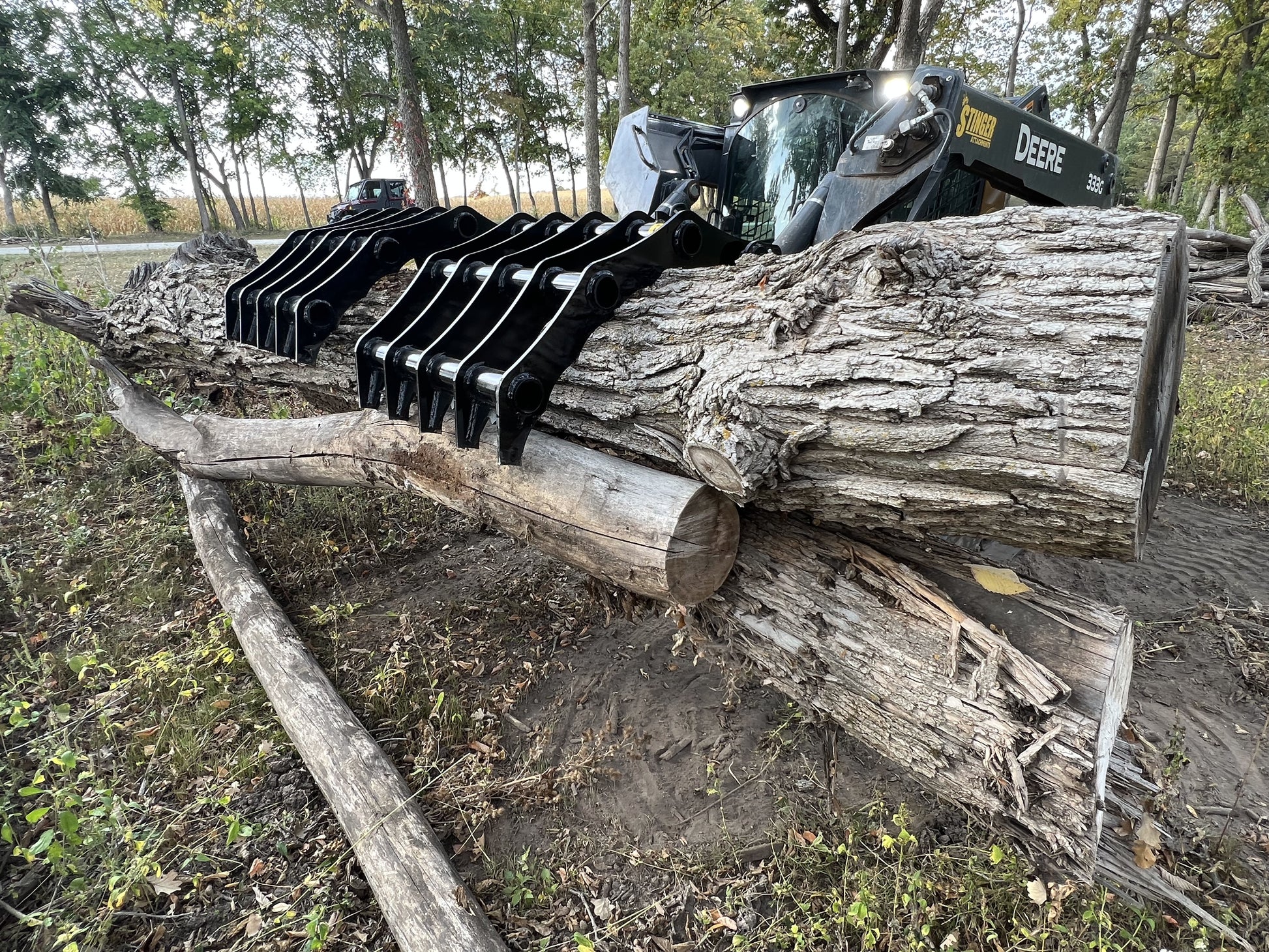

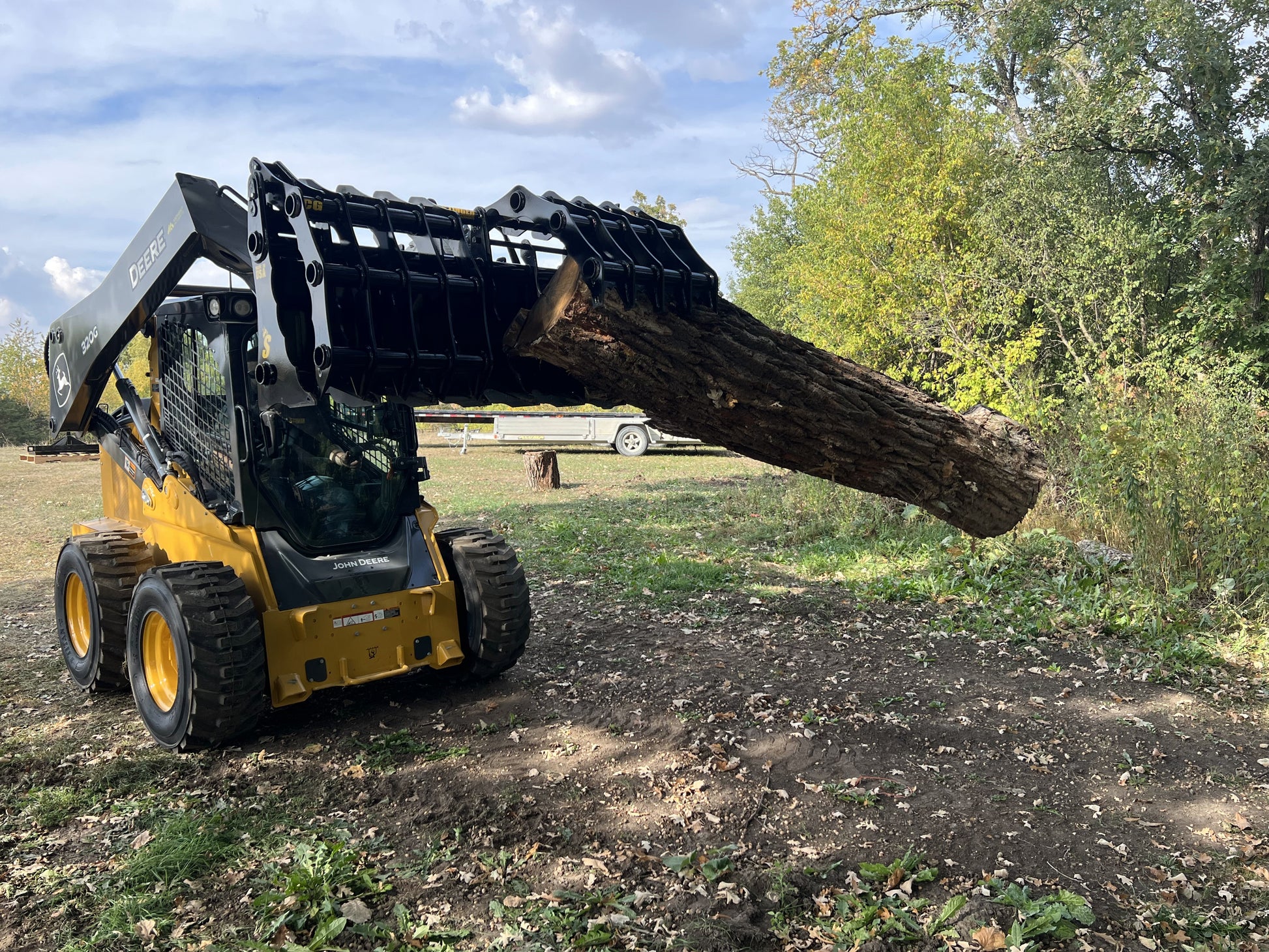

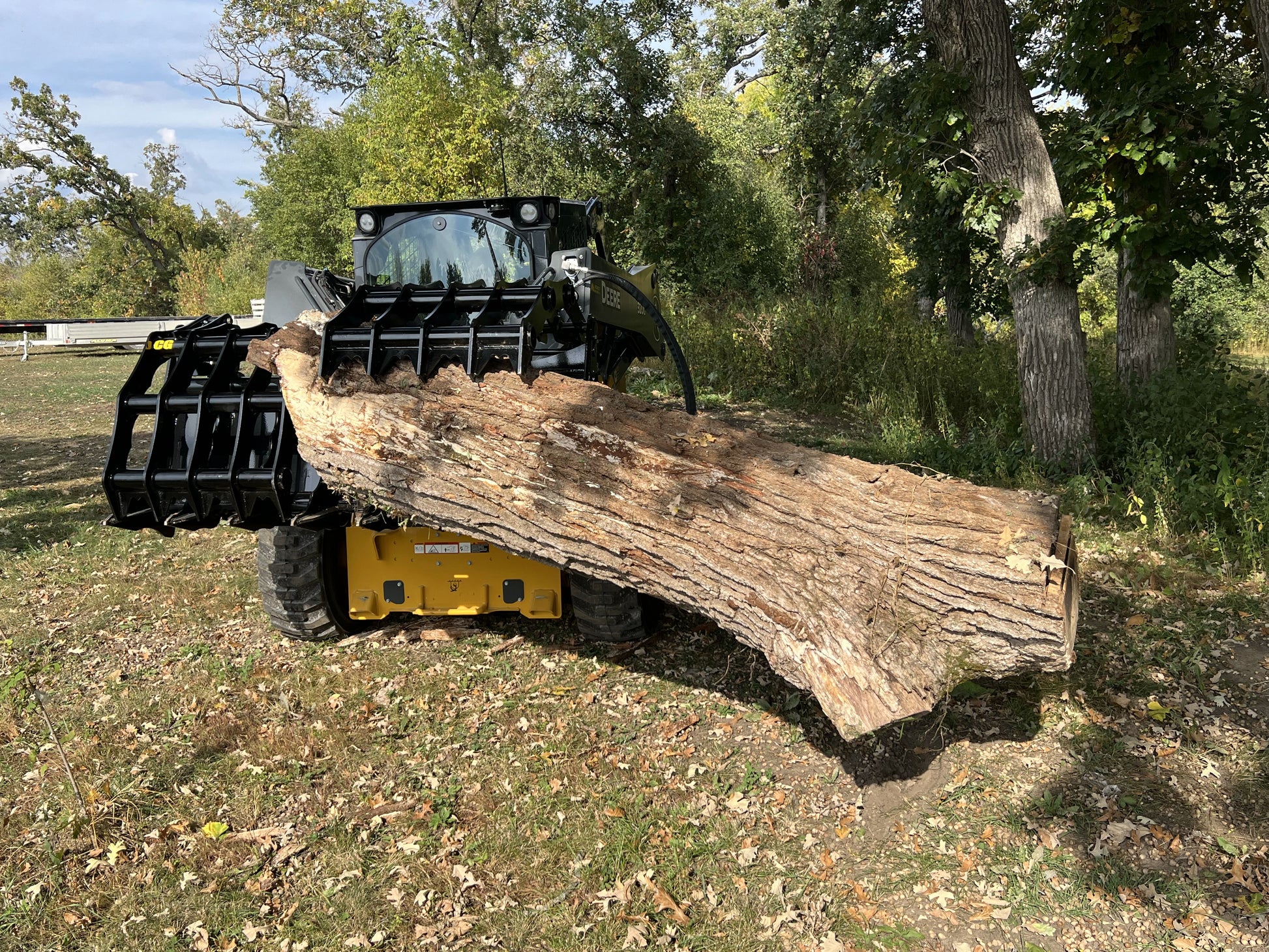

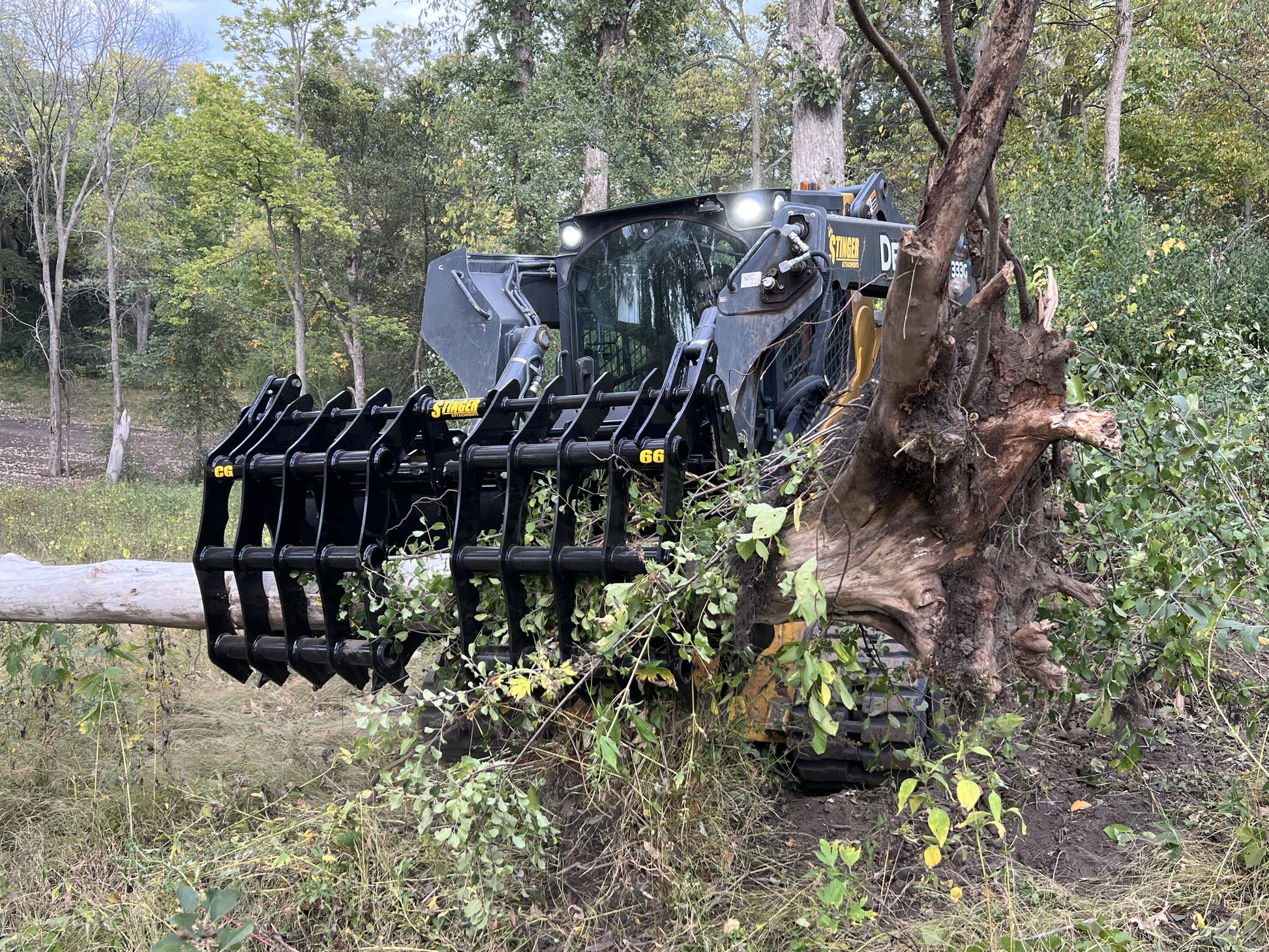

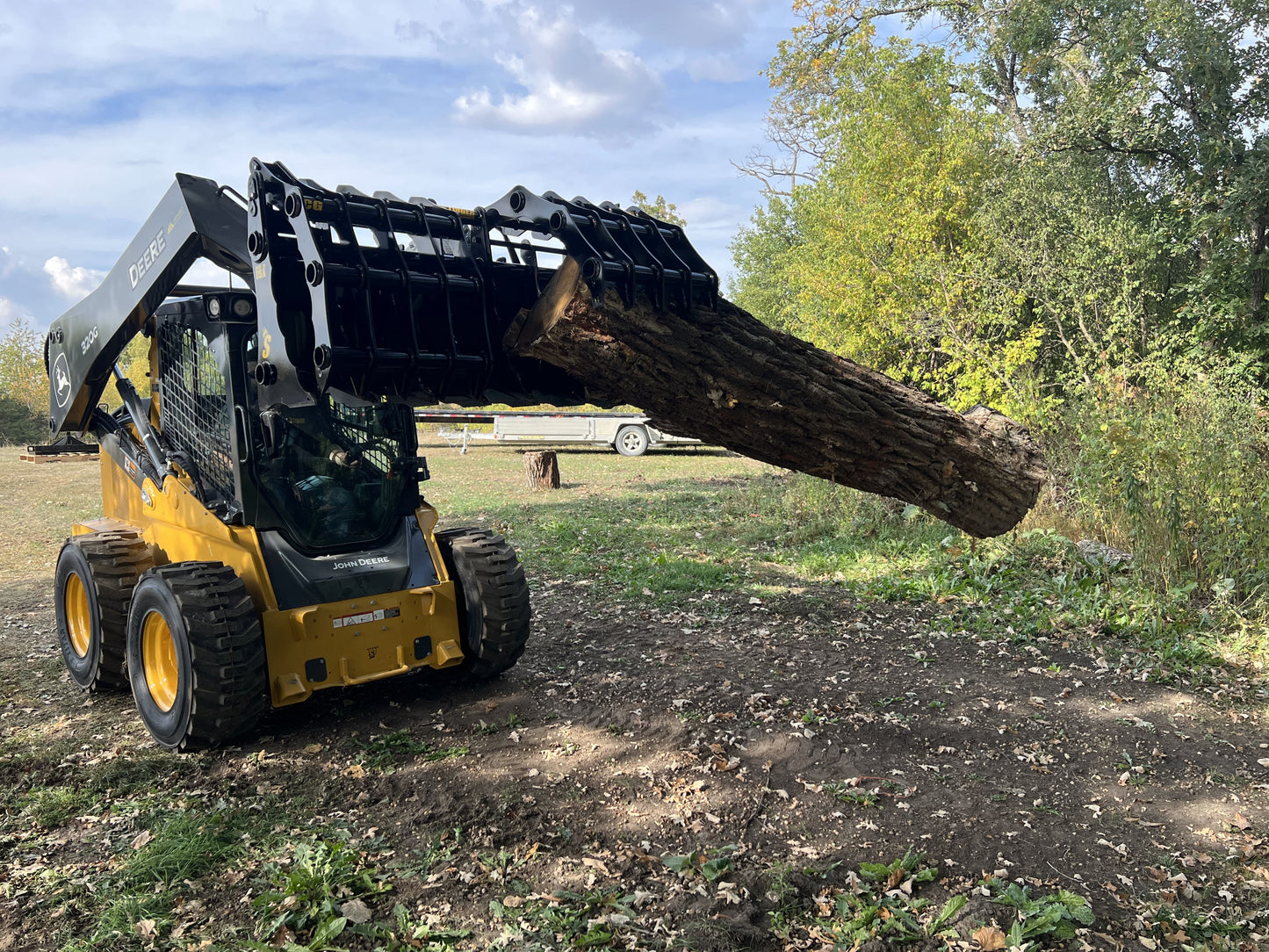

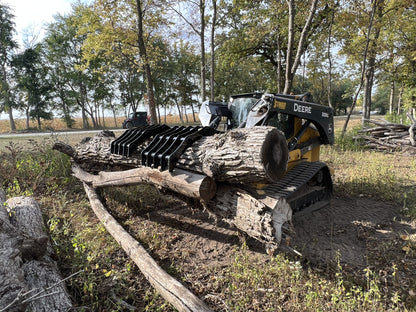

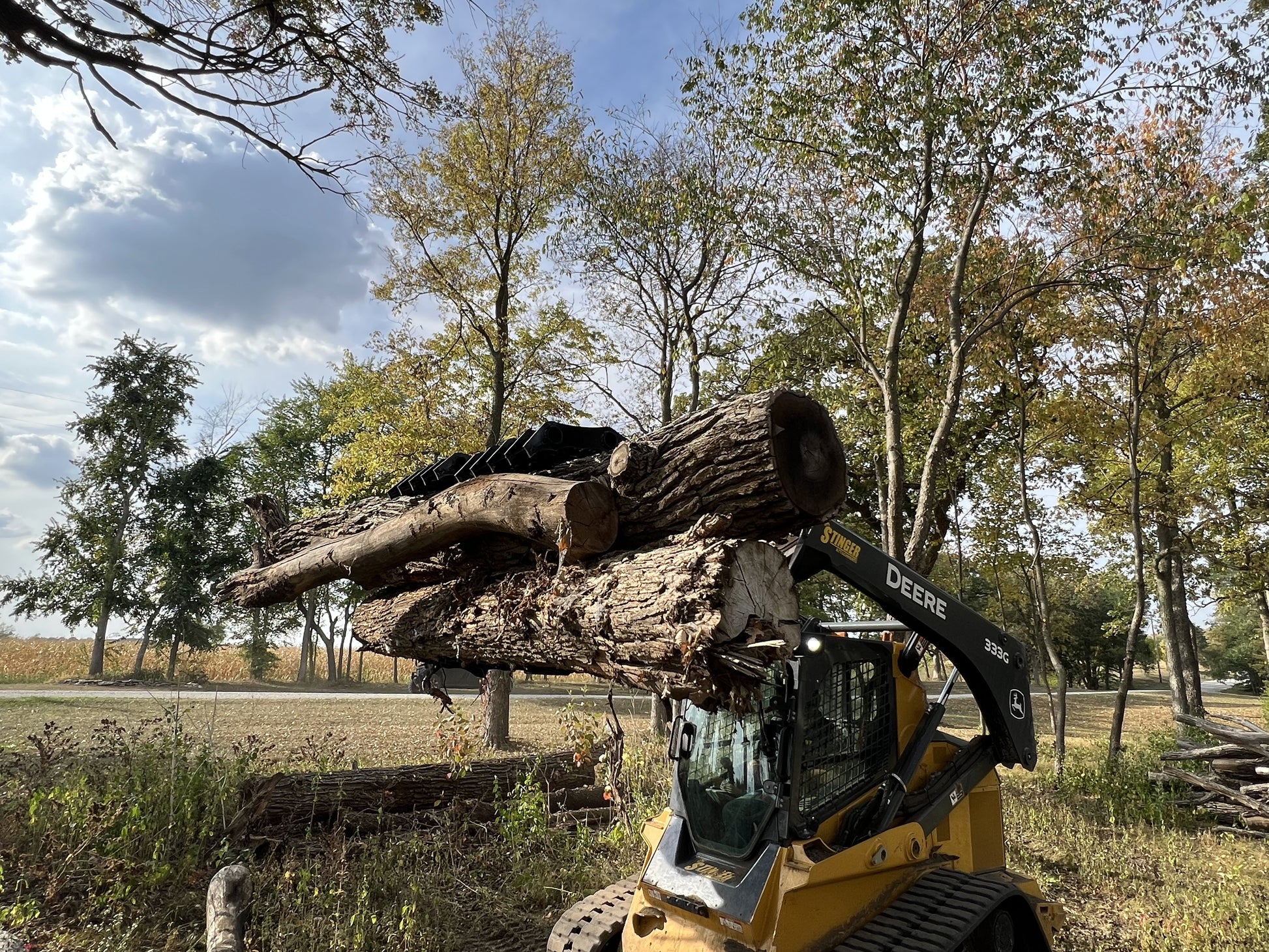

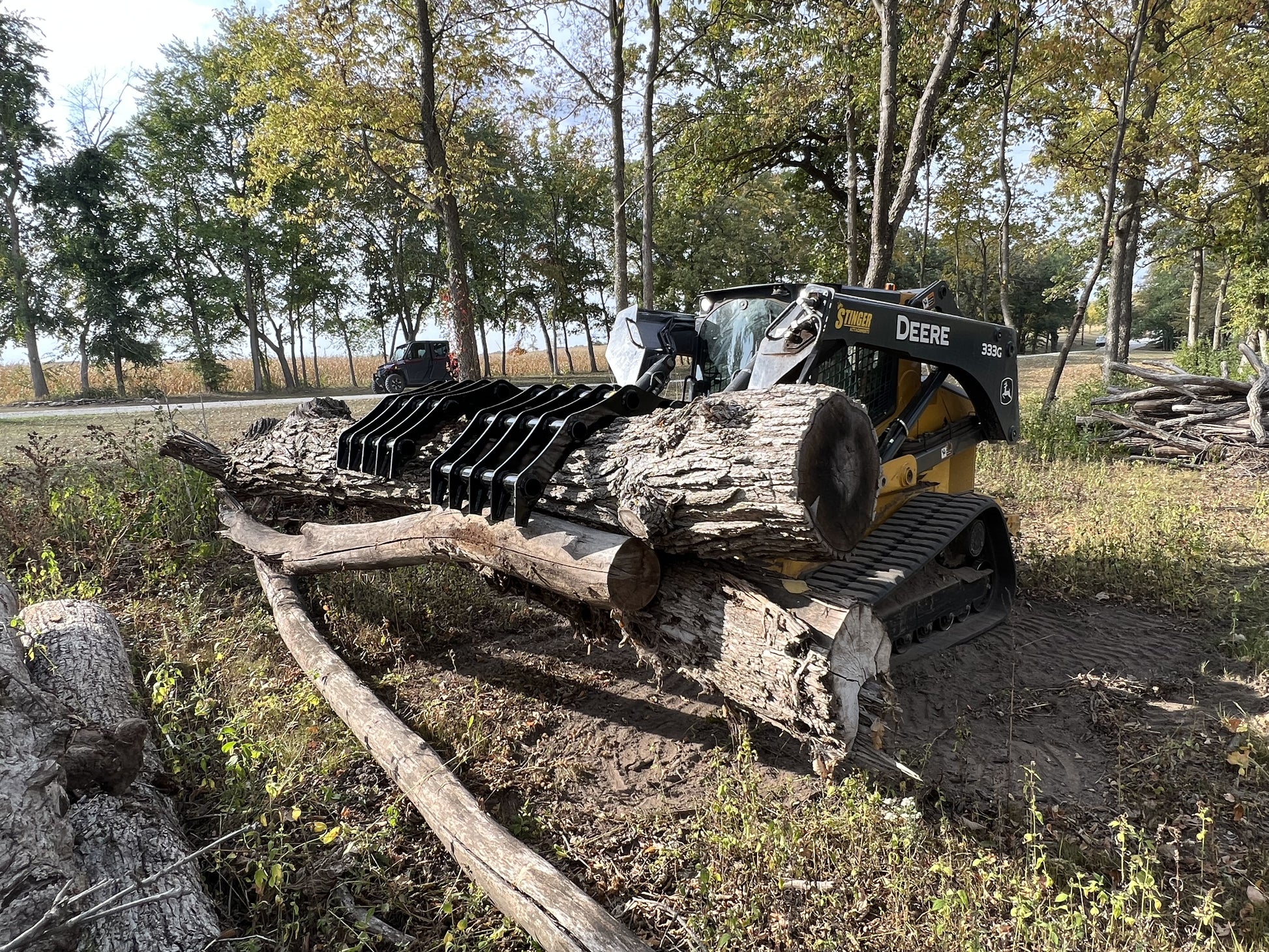

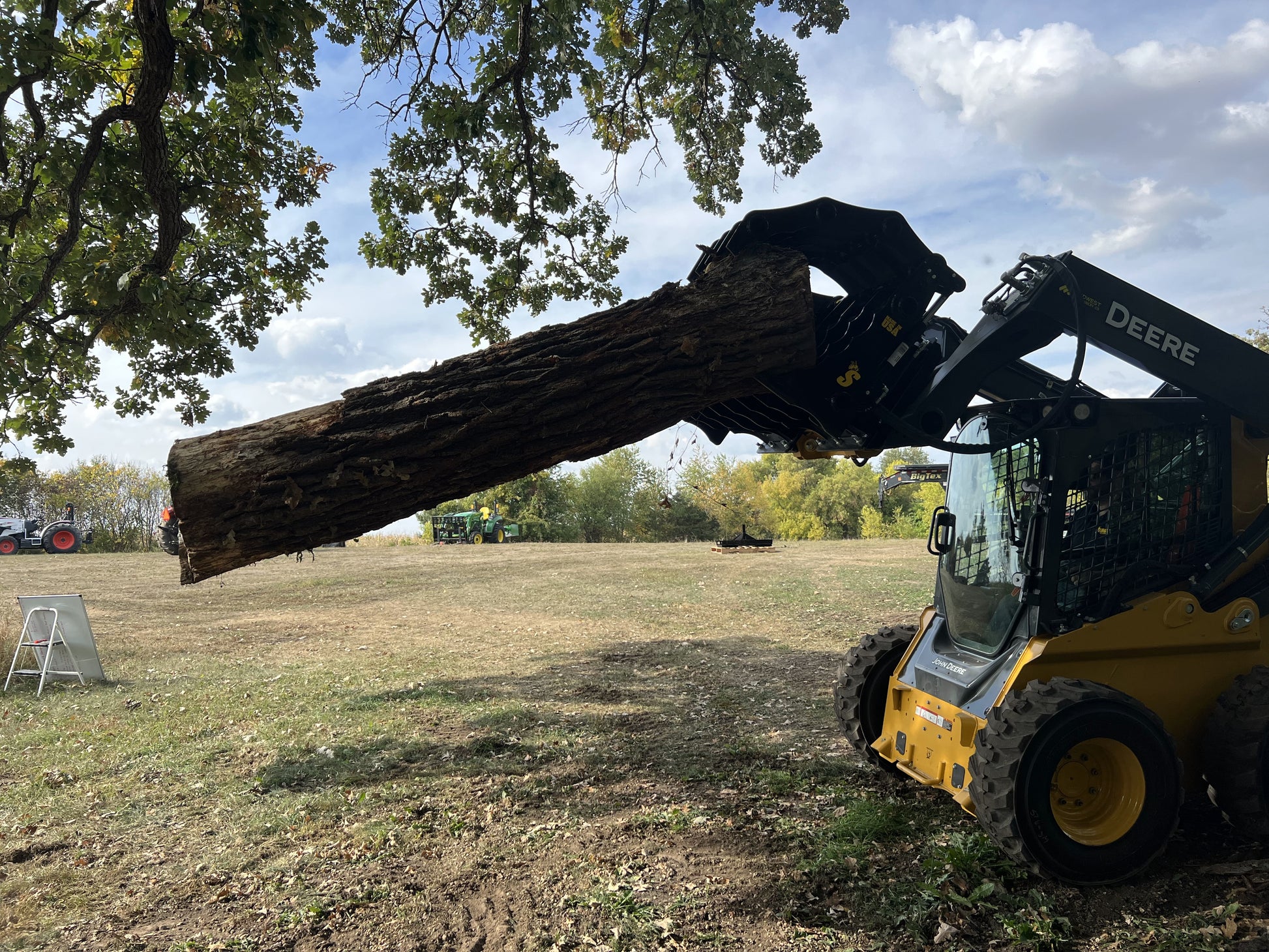

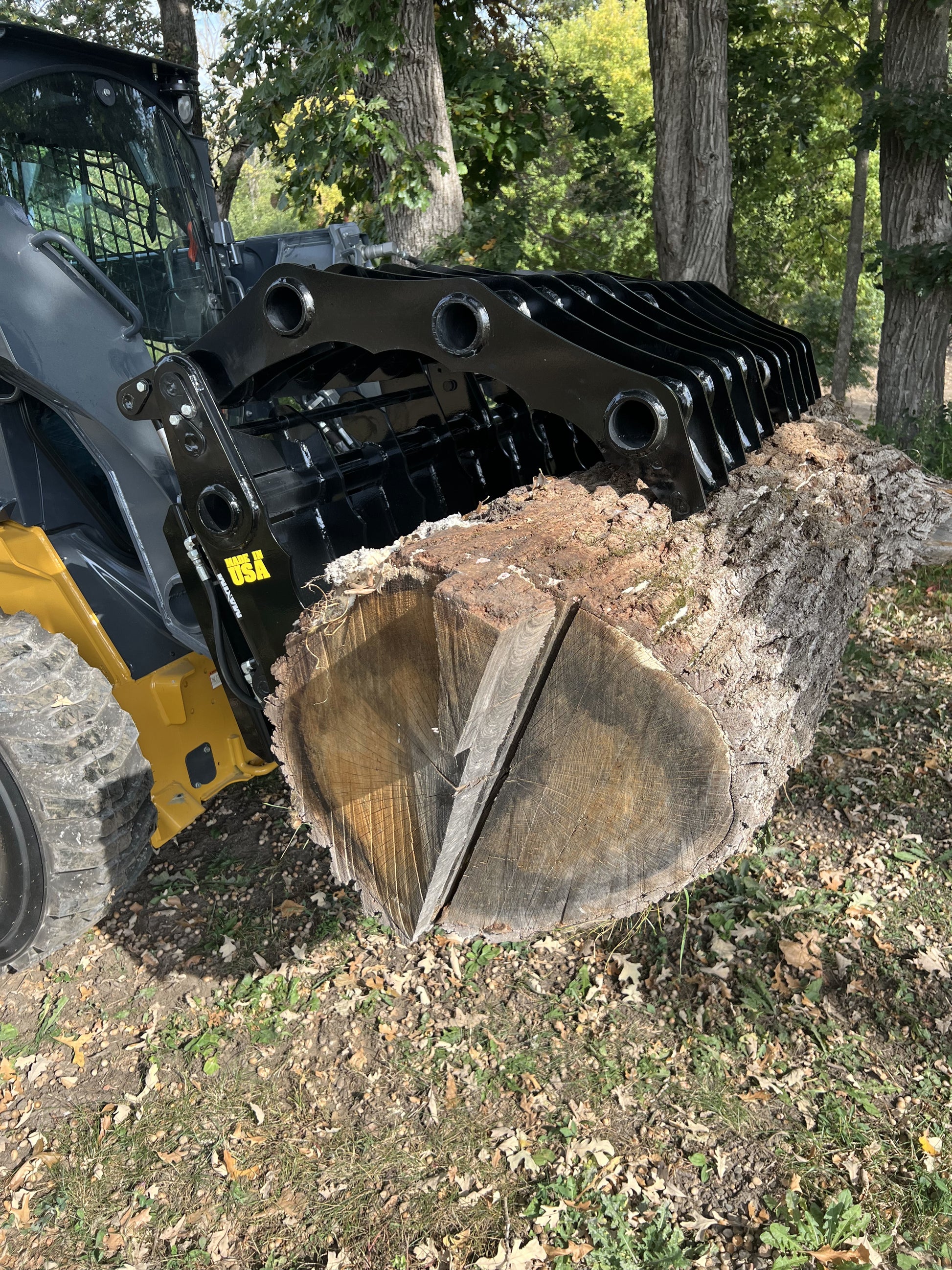

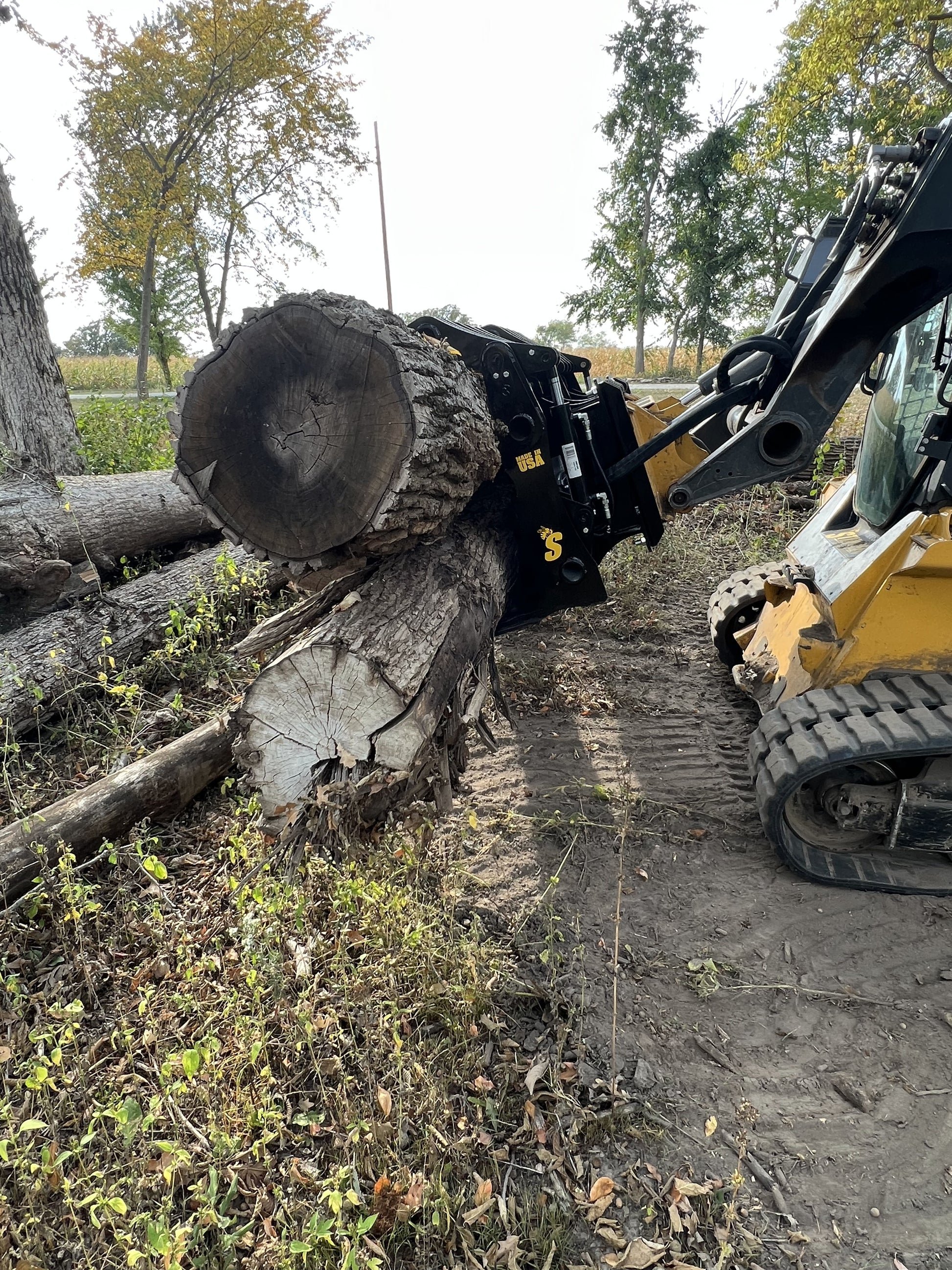

Carry and stack timber and logs efficiently with secure independent clamping.

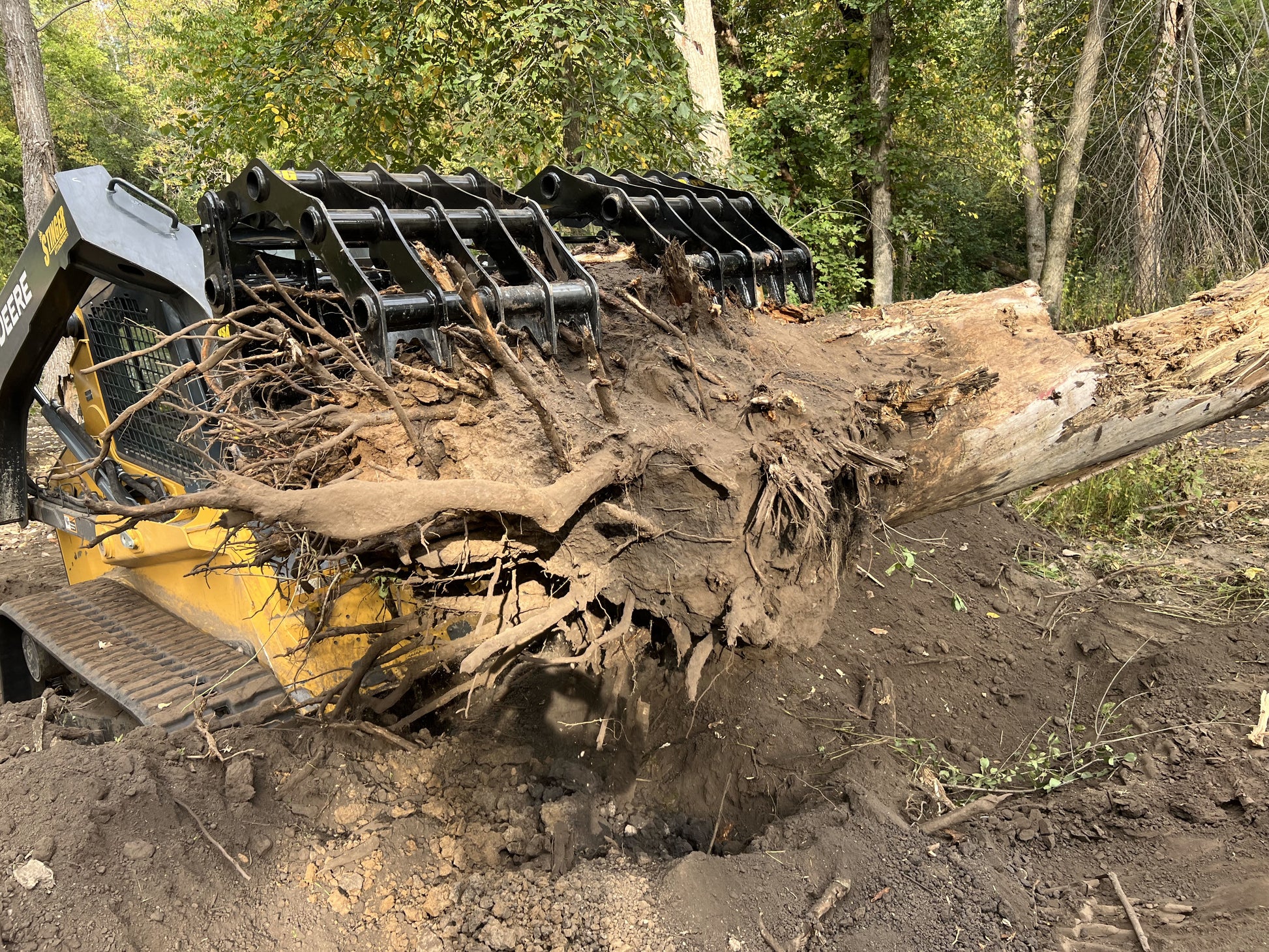

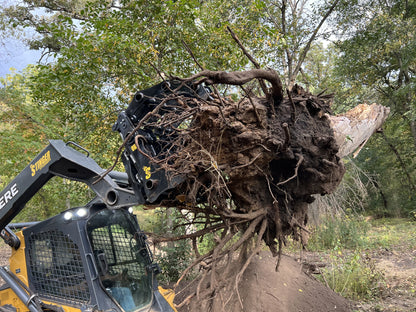

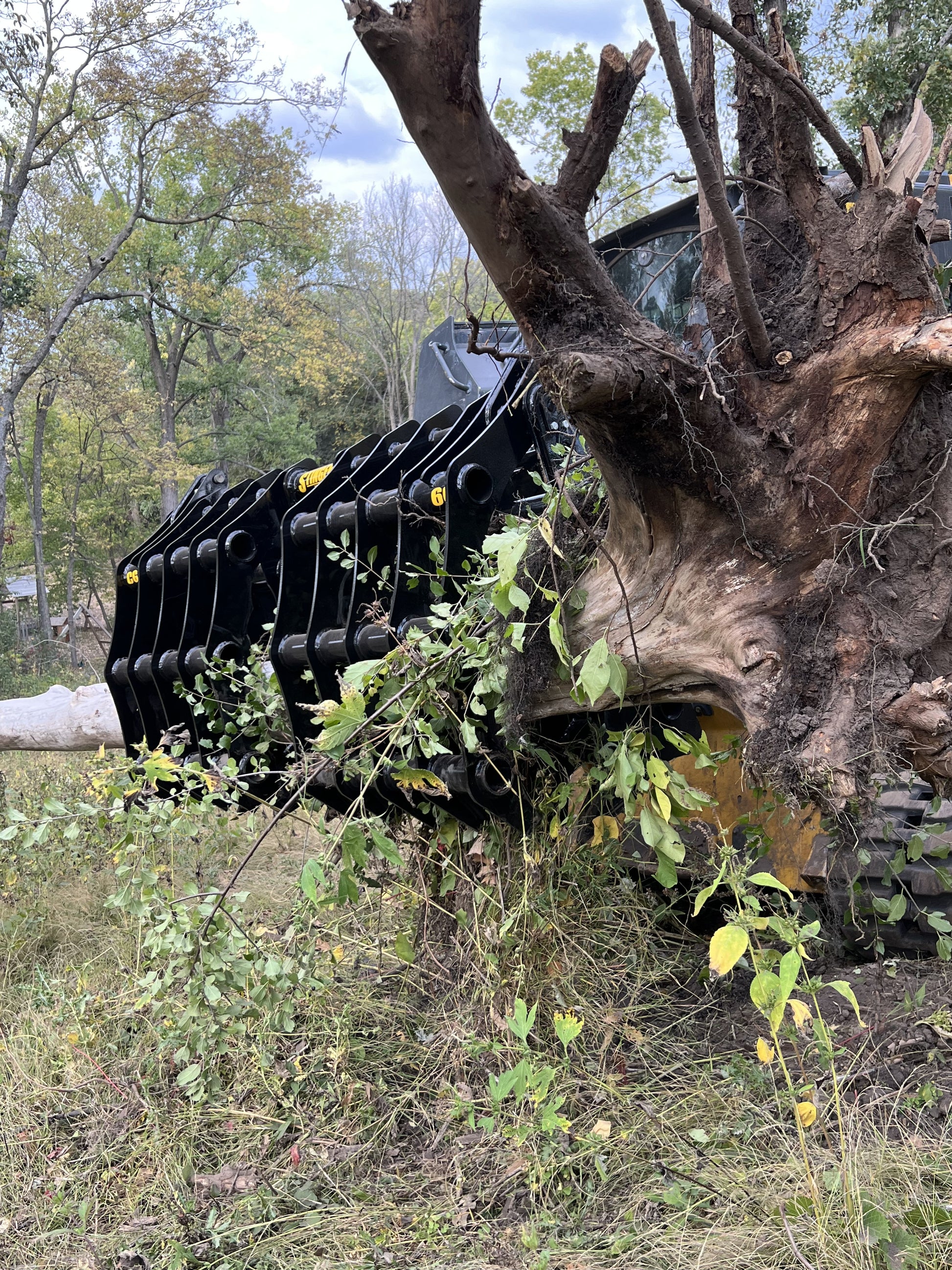

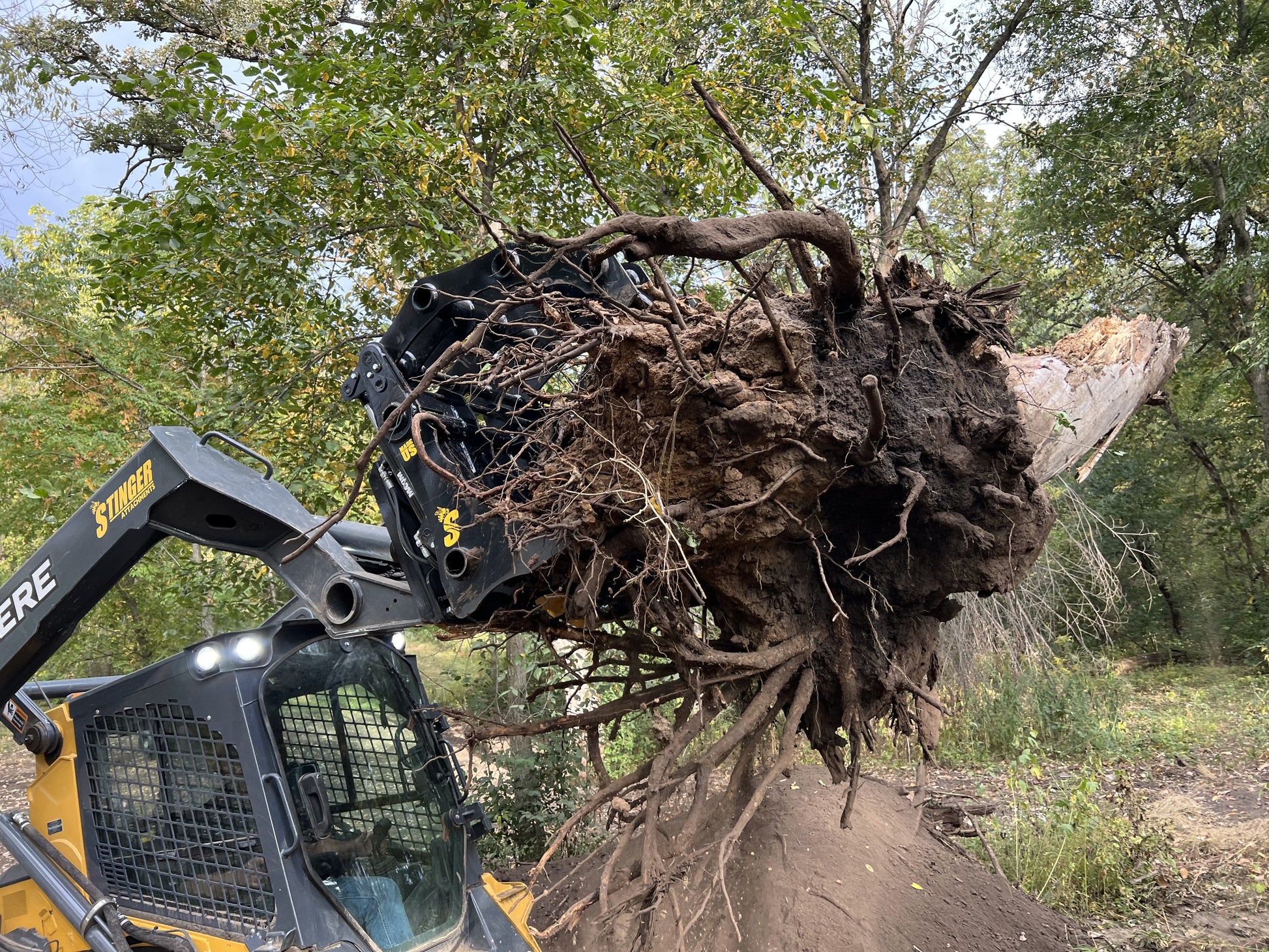

Remove and transport rock and heavy debris from job sites.
Handle hay bales, fence posts, or pipes with ease.
Scoop loose materials like stone or manure using the enclosed back design.
Ideal for skid steers and utility tractors with 50 - 100 HP.
Why Choose Stinger Attachments?
Stinger Attachments manufactures all products in-house in Minnesota using American-made AR200 and Grade 50 steel. The CG Series Clam Grapple combines precision control, exceptional strength, and compatibility across multiple carriers - making it one of the most reliable and versatile grapples in its class.
