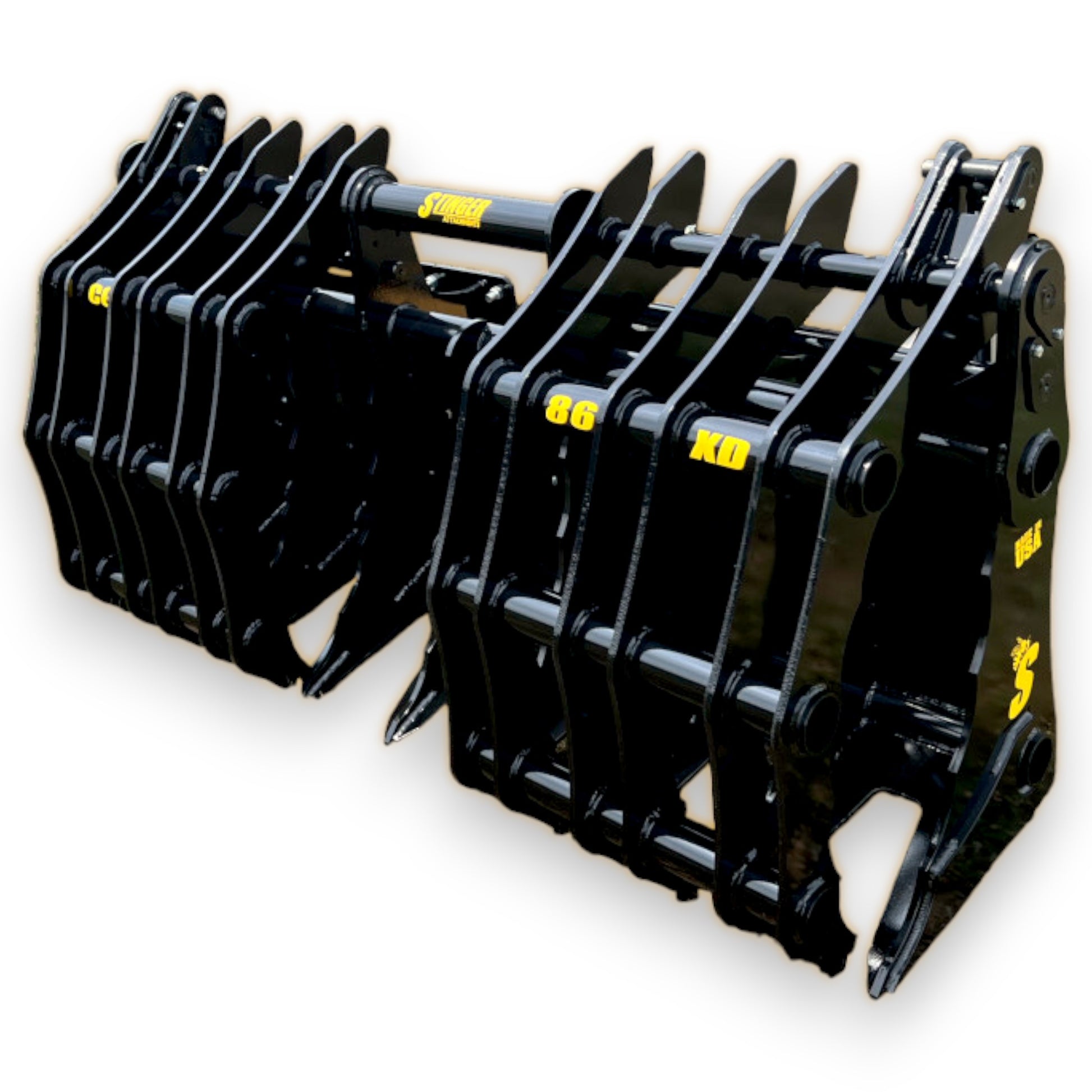

Stinger Attachments Extreme Duty Clam Grapple for Skid Steer
Stinger Attachments Extreme Duty Clam Grapple for Skid Steer
Stinger Attachments
SKU:HF-STG-CG-XD-86-UQA
Couldn't load pickup availability
- SECURE PAYMENT
- MADE IN THE USA
- EASY SHIPPING
The Stinger Attachments Extreme Duty Clam Grapple (CG-XD Series) is built to dominate the toughest jobs. Designed for high-horsepower skid steers, tractors, and medium wheel loaders, this grapple is a true workhorse for commercial and industrial applications. Made from AR200 abrasion-resistant steel, it provides maximum strength and durability while keeping weight optimized for performance.
Key Features:
- Grapple Opening: Massive 60-inch jaw width for handling oversized materials.
- Tine Spacing: 10.5 inches for optimal grip and efficient debris filtering.
- Tine Material: ½-inch AR200 abrasion-resistant steel for exceptional toughness.
- Hydraulic Cylinders: (2) 3×10-inch welded 3,000 PSI cylinders for maximum clamping force.
- Pivot System: Greaseable grapple pivot shaft for smooth operation and easy maintenance.
- Mounting Options: Interchangeable bolt-on mount system for maximum carrier compatibility.
- Warranty: 2 Years | 100% USA Made.
Specifications:
| Model Width | Approx. Weight | Height | Material |
|---|---|---|---|
| 86″ | 1,750 lbs | 47″ | ½″ AR200 Steel |
| 96″ | 1,850 lbs | 47″ | ½″ AR200 Steel |
| 107″ | 1,950 lbs | 47″ | ½″ AR200 Steel |
Construction & Materials:
- AR200 Steel: Provides superior strength and wear resistance while maintaining a lighter weight.
- Structural Tubing: Reinforced 3×10 cylinder supports and 2½-inch steel tube structure for extreme durability.
- Independent Dual Grapples: Operate separately for superior control over uneven loads.
- Enclosed Back: Prevents debris from entering the operator area for added safety.
- Hydraulic Couplers: Compatible with multiple coupler types, including flat-face and quick-connect systems.
- Mount Compatibility: Universal Quick-Attach Carrier and ISO Wheel Loader Carrier standard.
Performance & Applications:
- Engineered for heavy-duty commercial and industrial operations.
- Ideal for forestry, construction, demolition, and material handling.
- Handles logs, boulders, brush, and scrap materials with unmatched stability.
- Independent grapples provide precise control on uneven or irregular loads.
Why Choose Stinger Attachments?
Stinger Attachments crafts all attachments in Minnesota using American-made AR200 and Grade 50 steel. The CG-XD Extreme Duty Clam Grapple delivers raw power, precision, and reliability for the most demanding applications - ensuring your machine performs at its peak every time.
